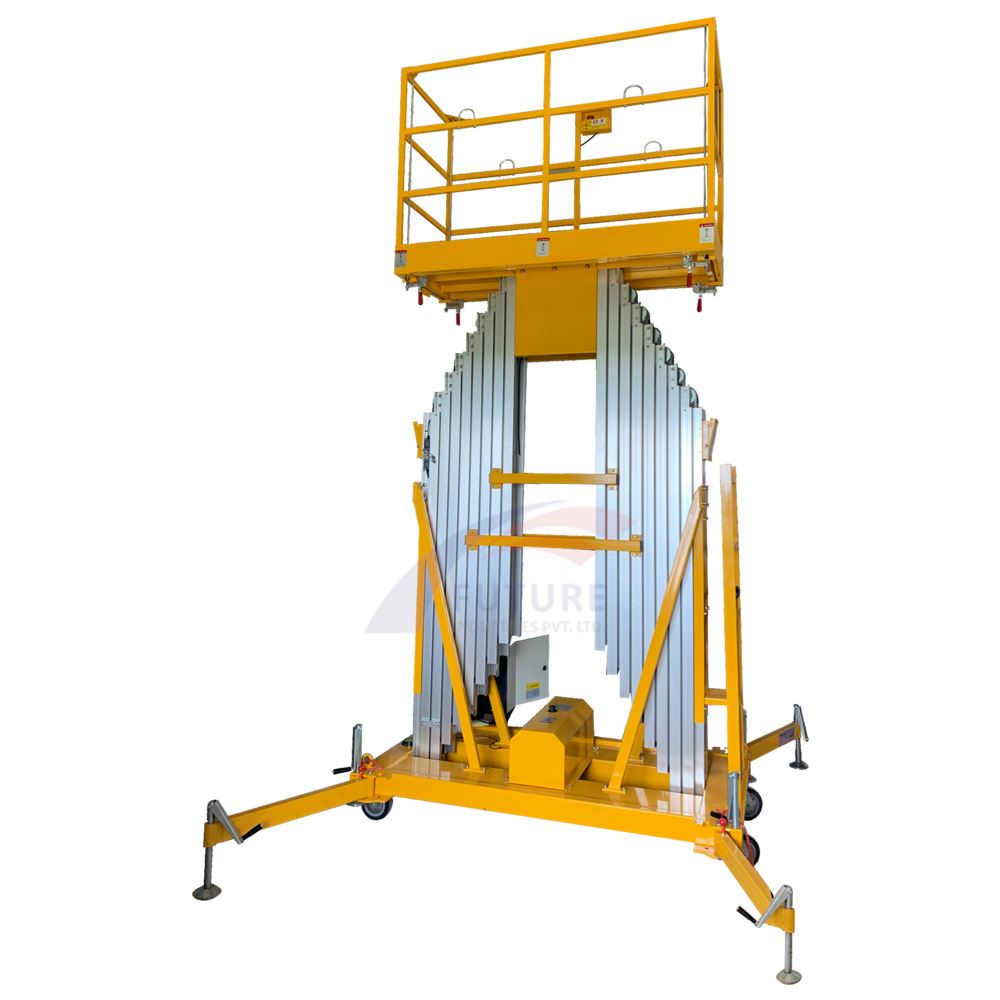

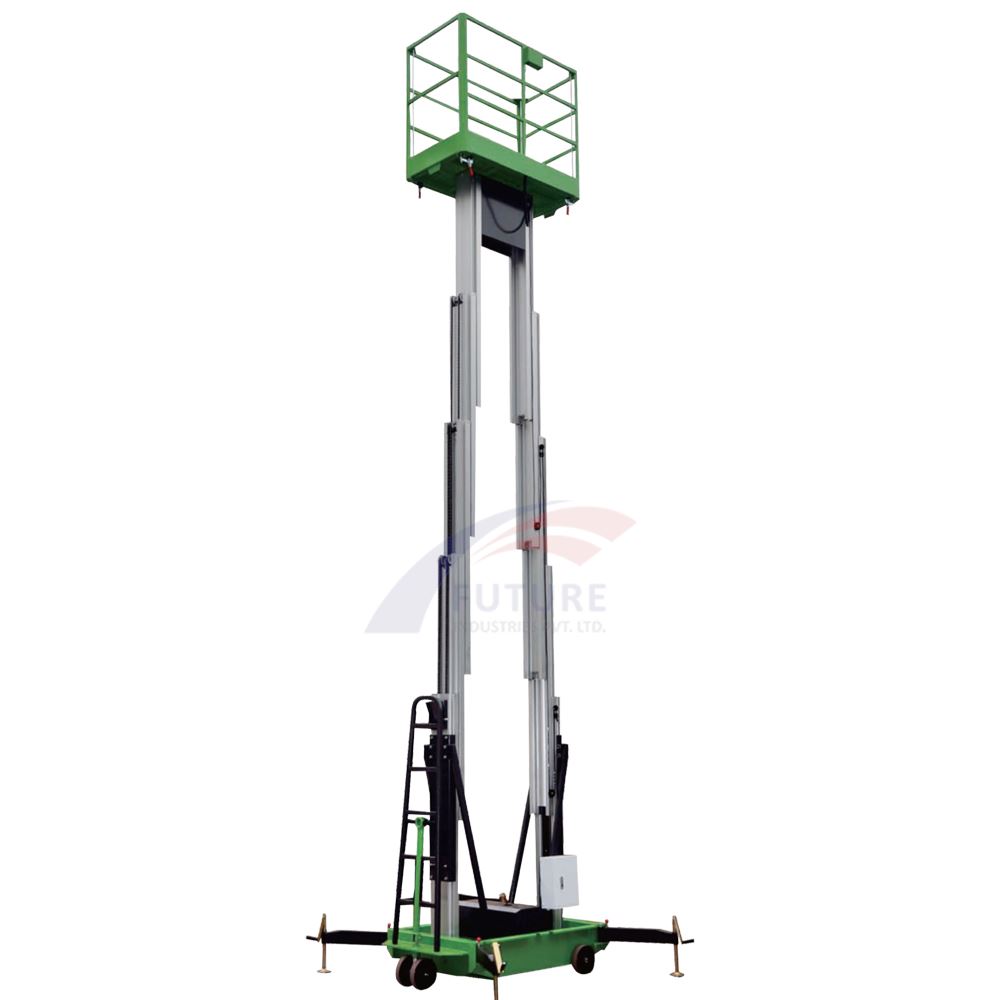

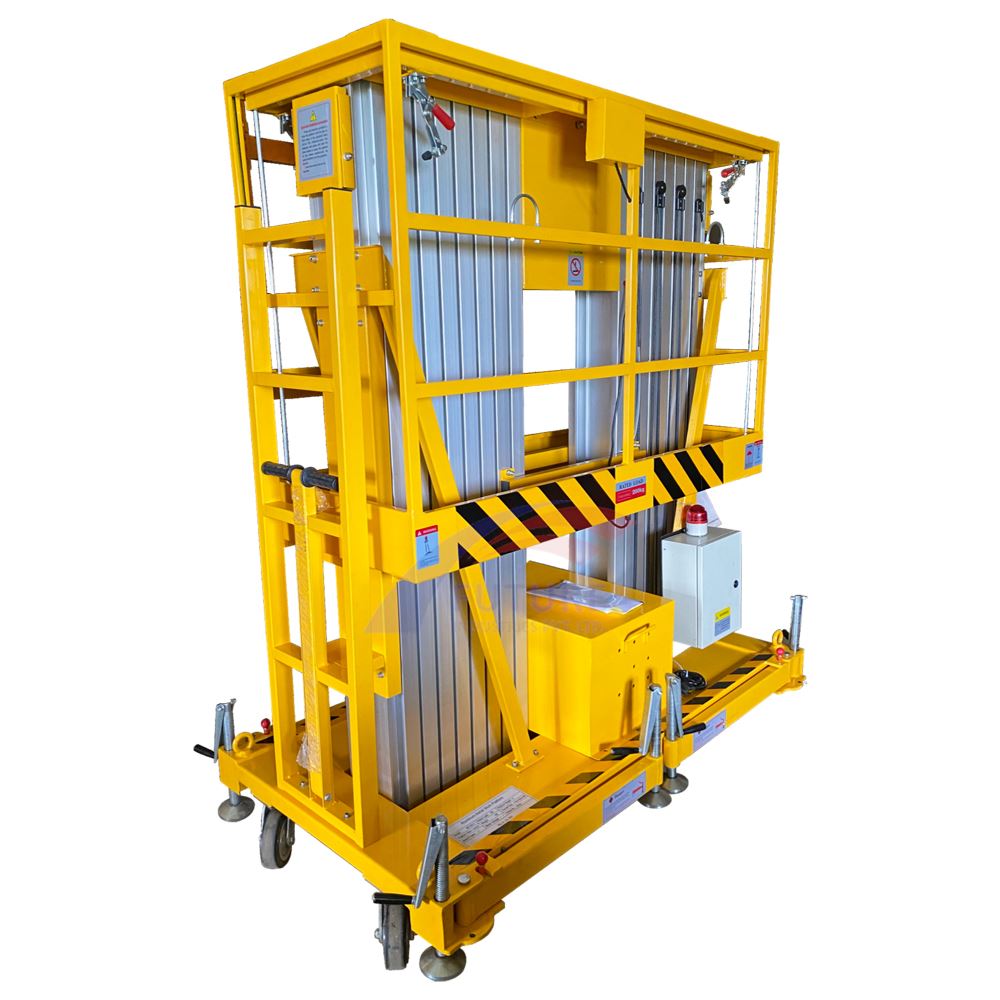

Dual Mast Aerial Platform

FIPL-AWP-186

AWP is a light weight equipment used mainly for indoor high-altitude works at subway station, theater, hotel lobby, etc. for decoration, maintenance, cleaning etc.

The unique aluminum mast structure is light and easy to move, and the support system combined with multiple safety protection system ensures the safety and stability of the platform. We can control the lifting from the platforms above as well as from panel below.

Double mast gives more loading capacity with more stability at high-altitude.

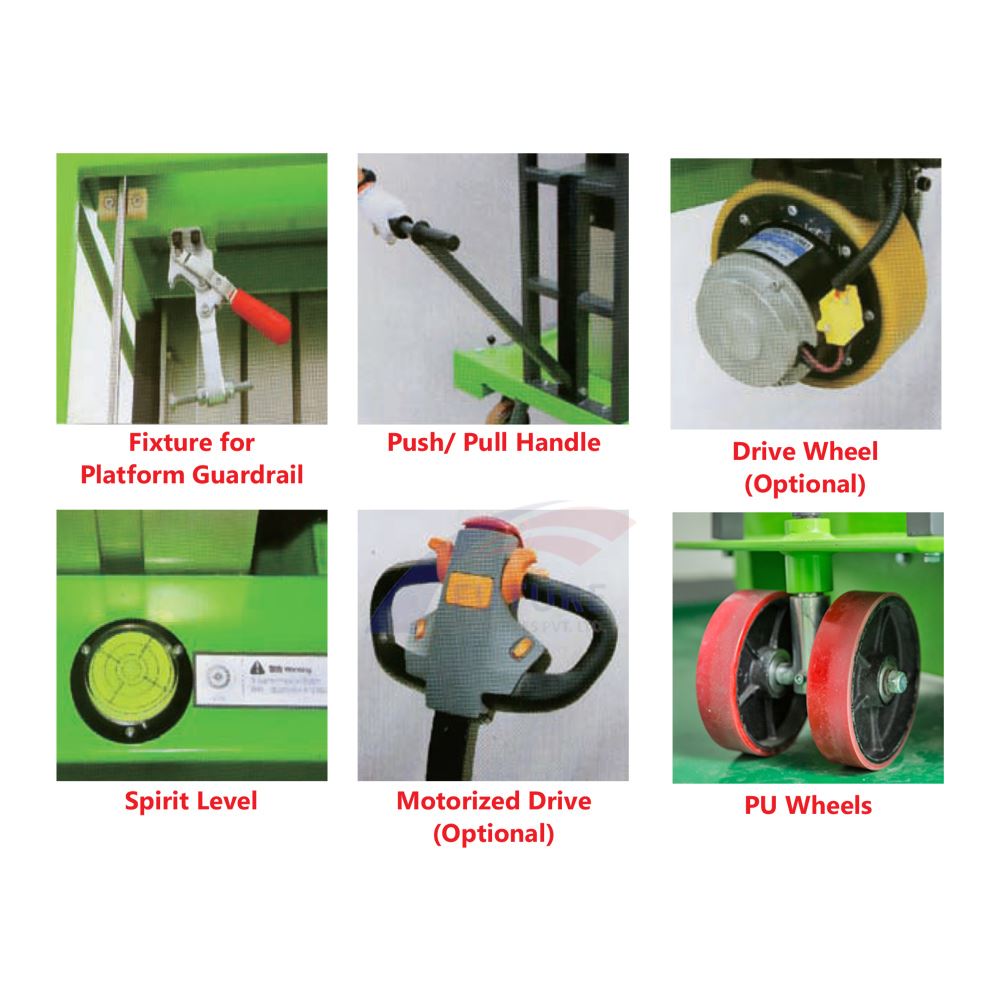

Standard Features

  • Auxiliary Lowering Device
  • Large spirit level
  • Emergency stop button
  • Ground and Platform control panels
  • Double Limit switches
  • Short circuit and leakage protection system

Optional Features

  • DC24V Power Supply
  • High grade hydraulic station
  • Explosion protection system
  • Stainless steel guardrail
  • Electric driving power
  • Insulated Platform
Download Catalogue
Document Request
Enquire Now
Back

Specification of Dual Mast Aerial Platform

MODEL FIPL-AWP-186/8 FIPL-AWP-186/10 FIPL-AWP-186/11 FIPL-AWP-186/12 FIPL-AWP-186/14 FIPL-AWP-186/16
Lift capacity 200kg 200kg 200kg 200kg 200kg 150kg
Platform occupancy max 1 1 1 1 1 1
Working height max 8.00m 10.00m 11.00m 12.00m 14.00m 16.00m
Platform height max 6.00m 8.00m 9.00m 10.00m 12.00m 14.00m
Stowed length 1.54m 1.54m 1.54m 1.76m 1.76m 1.9m
Stowed height 2.00m 2.00m 2.00m 2.00m 2.00m 2.31m
Platform size 1.30*0.62m 1.30*0.62m 1.30*0.62m 1.52*0.62m 1.52*0.62m 1.52*0.62m
Outrigger Footprint 1.77*1.82m 1.77*1.82m 1.77*1.82m 2.1*2.00m 2.1*2.00m 2.36*2.33m
Ground clearance 0.05m 0.05m 0.05m 0.05m 0.05m 0.05m
Lifting motor (AC) 1.1kW 1.1kW 1.1kW 1.1kW 1.1kW 1.1kW
Weight (AC) 600KG 660KG 730KG 780KG 830KG 900KG
Power source 24v/100Ah 24v/100Ah 24v/100Ah 24v/100Ah 24v/100Ah 24v/100Ah
Lifting Motor (DC) 0.80kw 0.80kw 0.80kw 0.80kw 1.5kw 1.5kw
Charger 24V/15A 24V/15A 24V/15A 24V/15A 24V/15A 24V/15A
