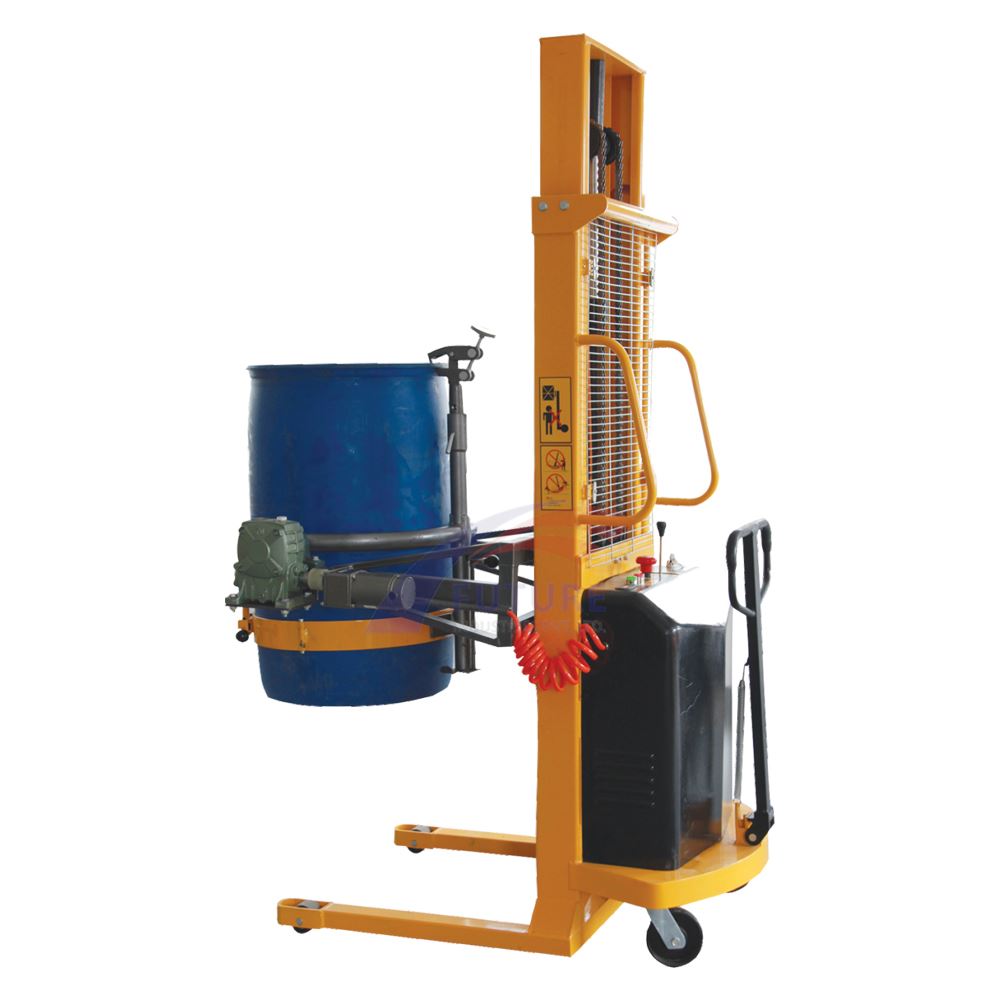

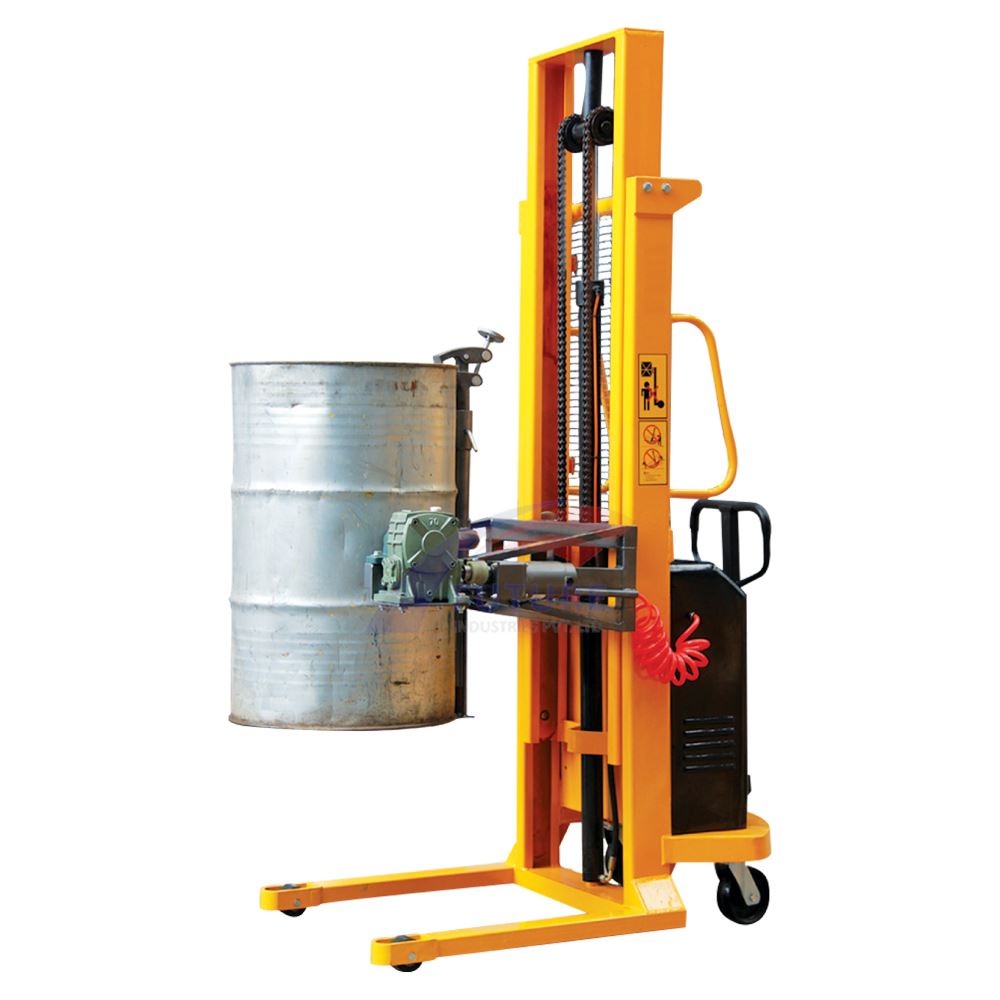

Electric Drum Lifter & Tilter

FIPL-YL450

The Electric Drum Lifter and Tilter is very efficient, fast, easy and reliable method for handling, loading and unloading rimmed drums. Drum Lifting is done by a hydraulic power-pack and tilting is done manually by a rotating handle. Movement is also manual with Push/Pull Handles provided.


  • Oil drum truck design structure is simple and lightweight, and the hoop structure is suitable for steel oil drums and plastic oil drums. The structure is simple and labor-saving.
  • It is suitable for the handling of liquids and liquids such as chemical industry, food workshops, dyes, paints, adhesives, petroleum, cooking oil, etc.
  • Can be operated by one person, labor saving and high work efficiency.
  • The matched intelligent charger provides a more safe and convenient usage, needn’t the special inspection during whole charging process.
Back

Specification of Electric Drum Lifter & Tilter

MODEL UNIT FIPL-YL450
Load Capacity kg 450
Lifting height mm 1600
Turning radius mm 1620
Wheel Size mm 80*55 / 150*50
Battery voltage/capacity V/Ah 12/120
Net weight Kg 360
Rotating range ° 360°
