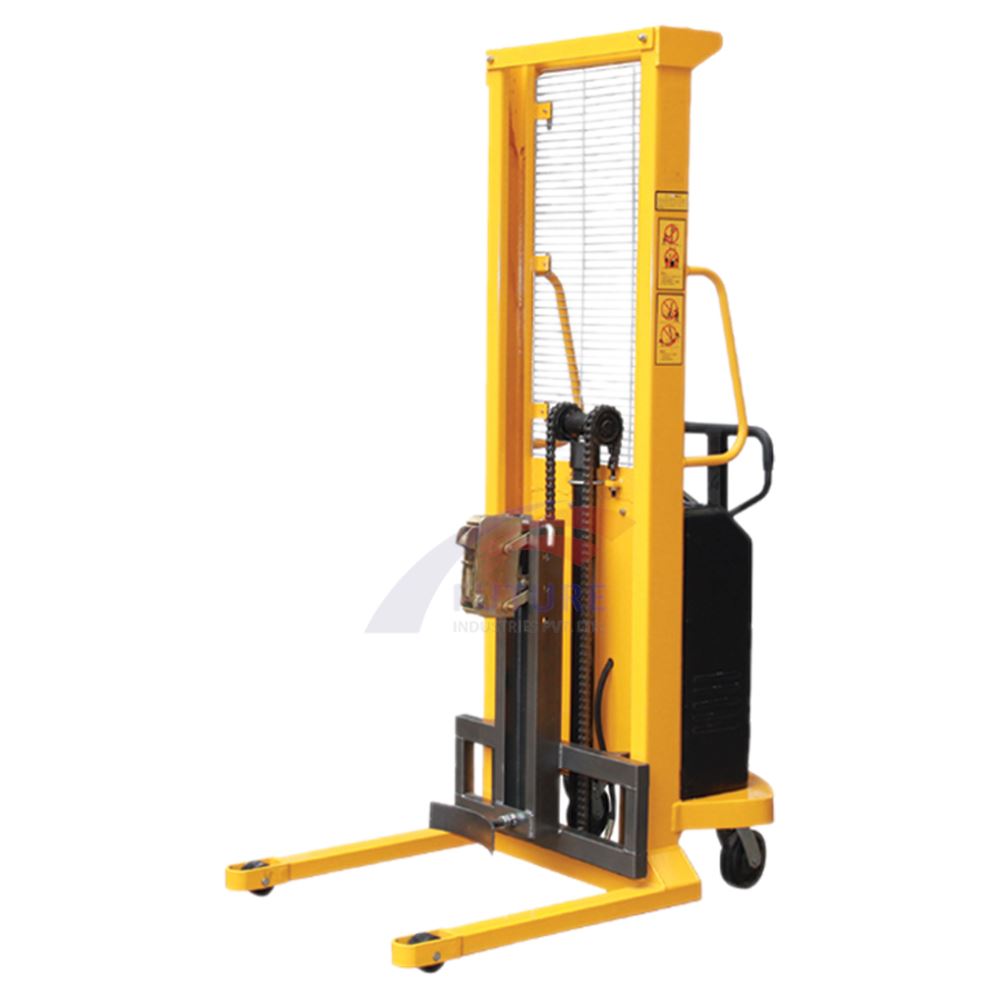

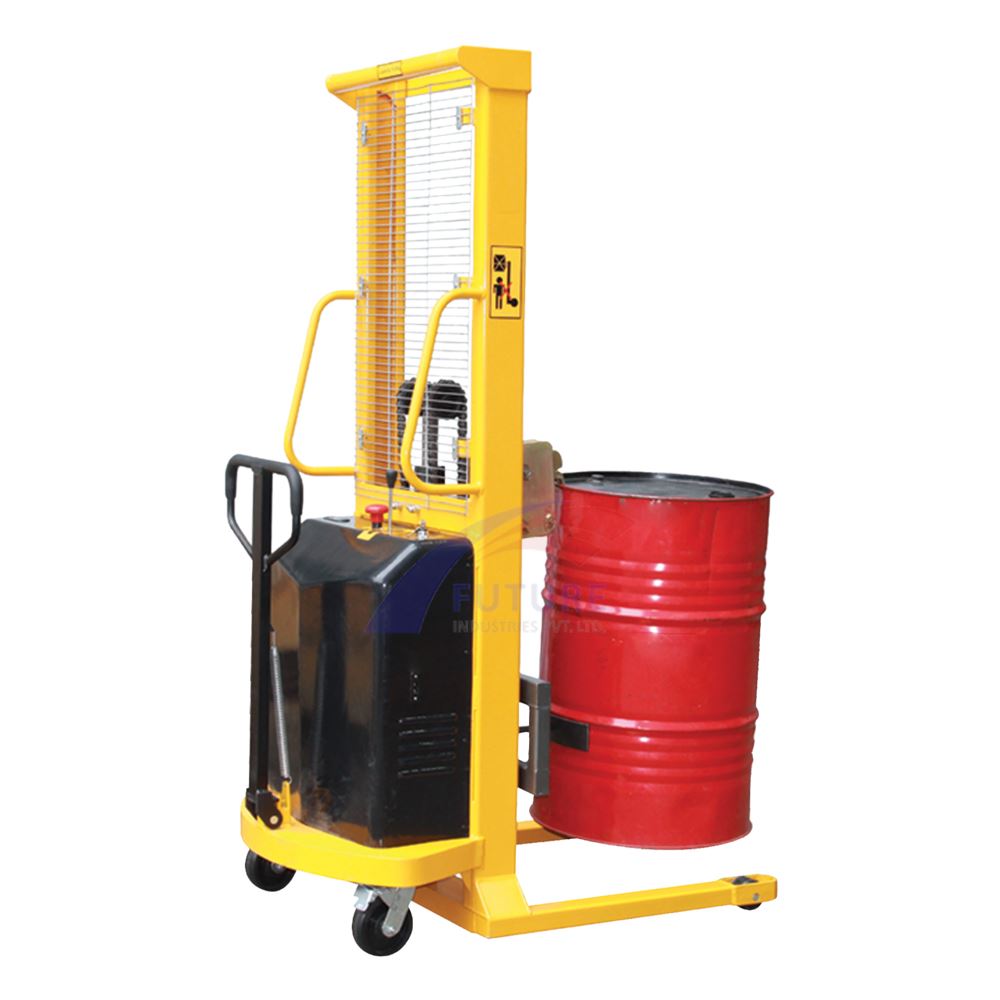

Electric Drum Stacker

FIPL-DT500

The Electric Drum Stacker is very efficient, fast, easy and reliable method for handling, loading and unloading rimmed drums. Drum Lifting is done by a hydraulic power-pack. Movement is manual with Push/Pull Handles provided.


  • Oil drum truck design structure is simple and lightweight, and the eagle-beak hook structure is suitable for steel oil drums and plastic oil drums. The structure is simple and labor-saving.
  • It is suitable for the handling of liquids such as chemical industry, food workshops, dyes, paints, adhesives, petroleum, cooking oil, etc.
  • Can be operated by one person, labor saving and high work efficiency.
  • The matched intelligent charger provides a more safe and convenient usage, needn’t the special inspection during whole charging process.
  • The eagle-beak structure is suitable for the transportation and stacking of oil drums.
Back

Specification of Electric Drum Stacker

MODEL UNIT FIPL-DT500
Rated load kg 500
Net weight kg 217
Wheel Specs (Front/Rear) mm ¢80*55/¢150*50
Inner/Outer width of front Leg mm 630/810
Outline dimension mm 1230*850*2080
Turning Radius mm 1430
Power Pack kW/h 1.5
Battery parameter Ah/V 120/12
Lifting height mm 1450
