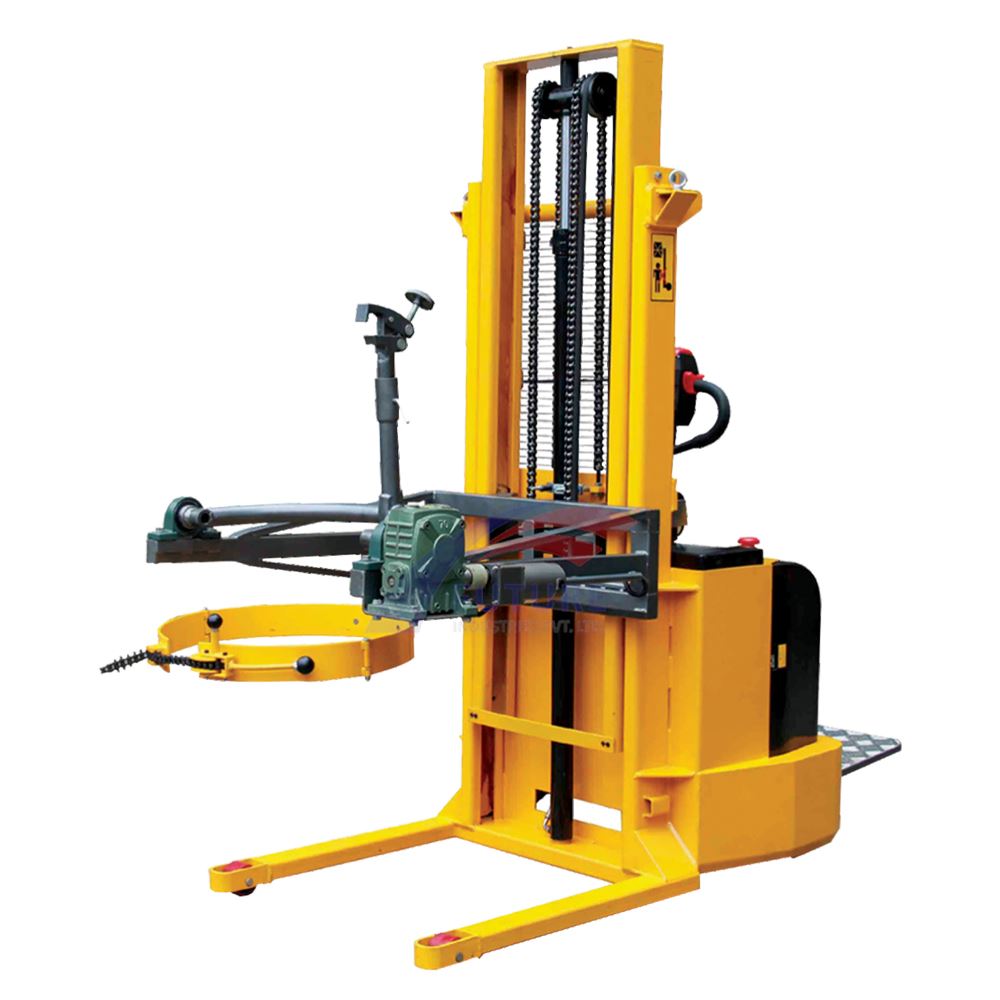

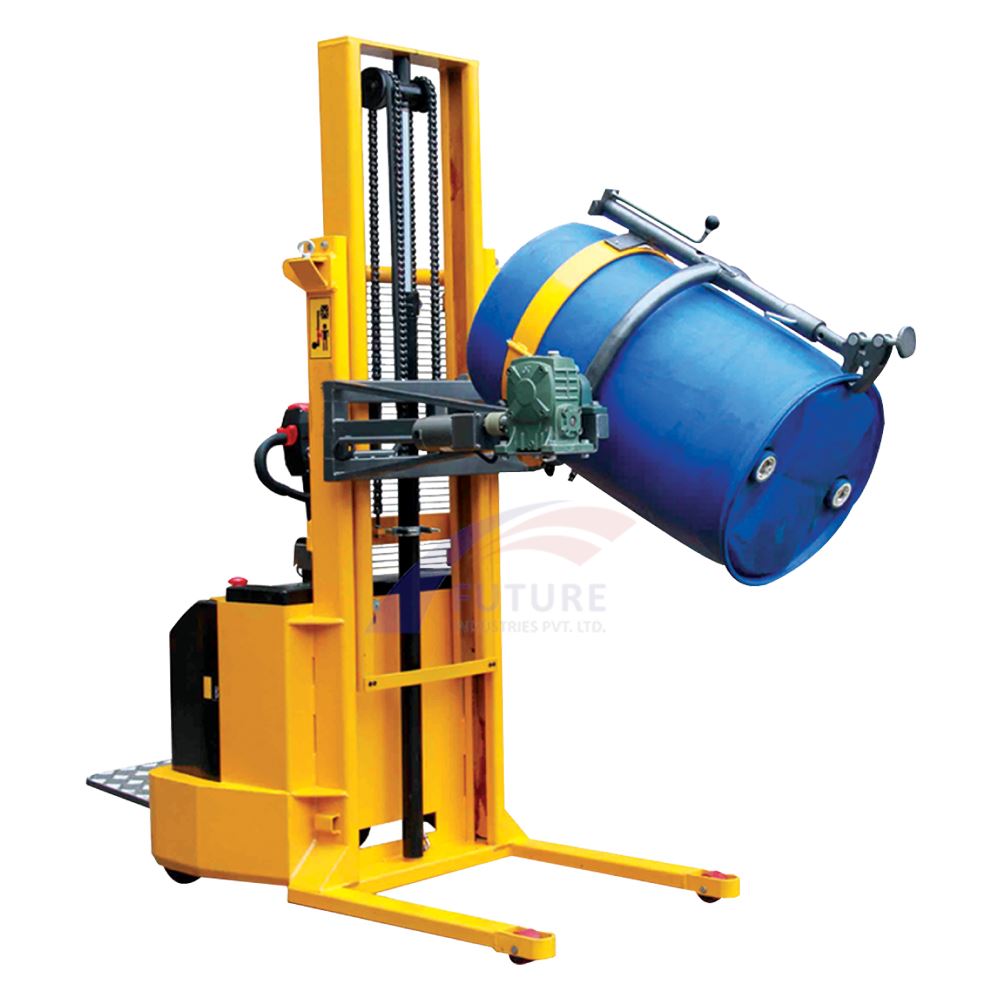

Fully Electric Drum Handling Equipment
FIPL-YL600A
This Fully Electric Drum Lifter and Tilter is very efficient, fast, easy and reliable method for handling, loading and unloading rimmed drums. Drum Lifting and Tilting is done by a hydraulic power-pack and Movement is done by Rider type Driving System.
- It is suitable for the transportation, lifting and overturning of 55 gallon iron drums and 200L closed plastic drums.
- A matching charger, the whole charging process does not require special supervision, making it safer and more convenient.
- Can be operated by one people, labor saving with high work efficiency.
Specification of Fully Electric Drum Handling Equipment
| PARTICULAR | UNIT | FIPL-YL600A |
| Drive type | / | Electric |
| Operating type | / | Standing steer type |
| Load capacity | kg | 600 |
| Lifting height | mm | 2400 |
| Turning radius | mm | 1910 |
| Max grade ability (fully-loaded/ no load) | % | 3/5 |
| Driving wheel size | mm | 250*80 |
| Tyre material | / | Polyurethane |
| Braking method | / | Electro magnetic braking |
| Drive motor power | kW | 1.2 |
| Lifting motor power | kW | 2.2 |
| Battery voltage/capacity | V/Ah | 24/30 |
| Battery parameters | V/A | 24/210 |
| Net weight | kg | 692 |
| Rotating range | º | 360º |
