Hydraulic Drum Stackers

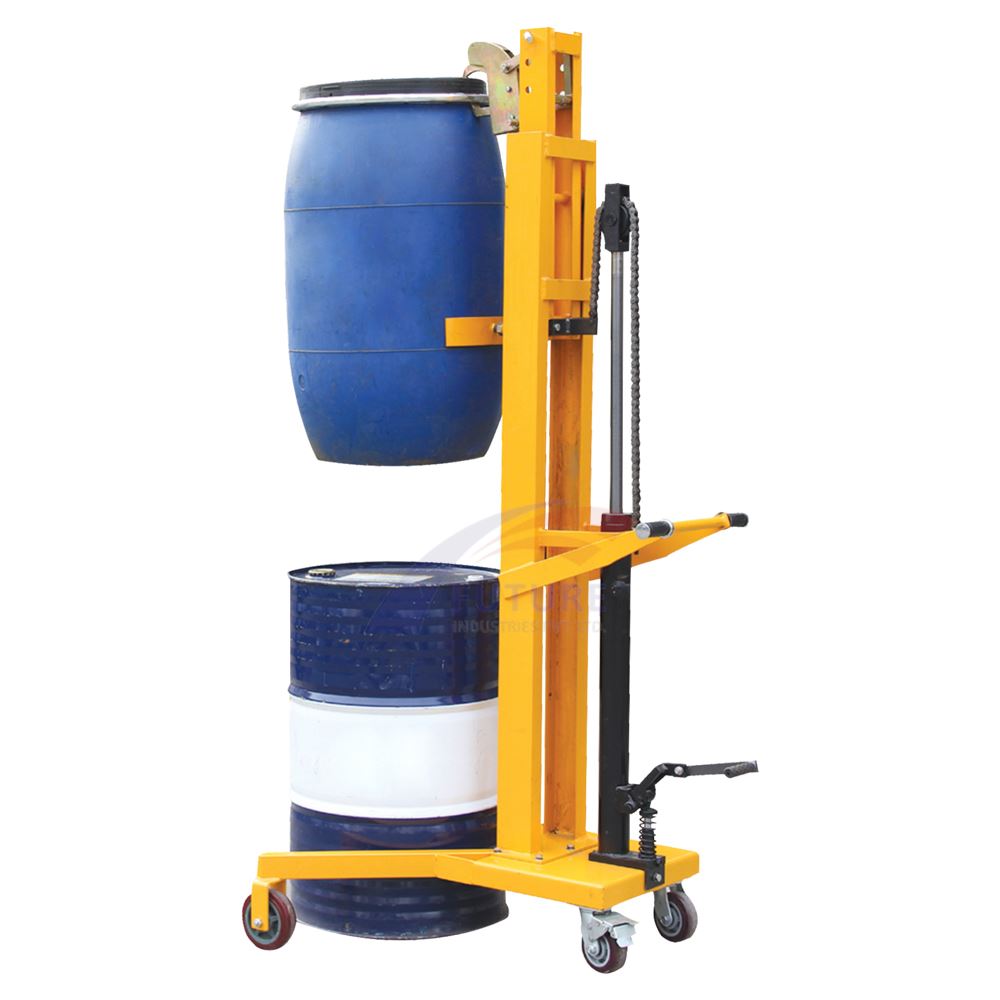

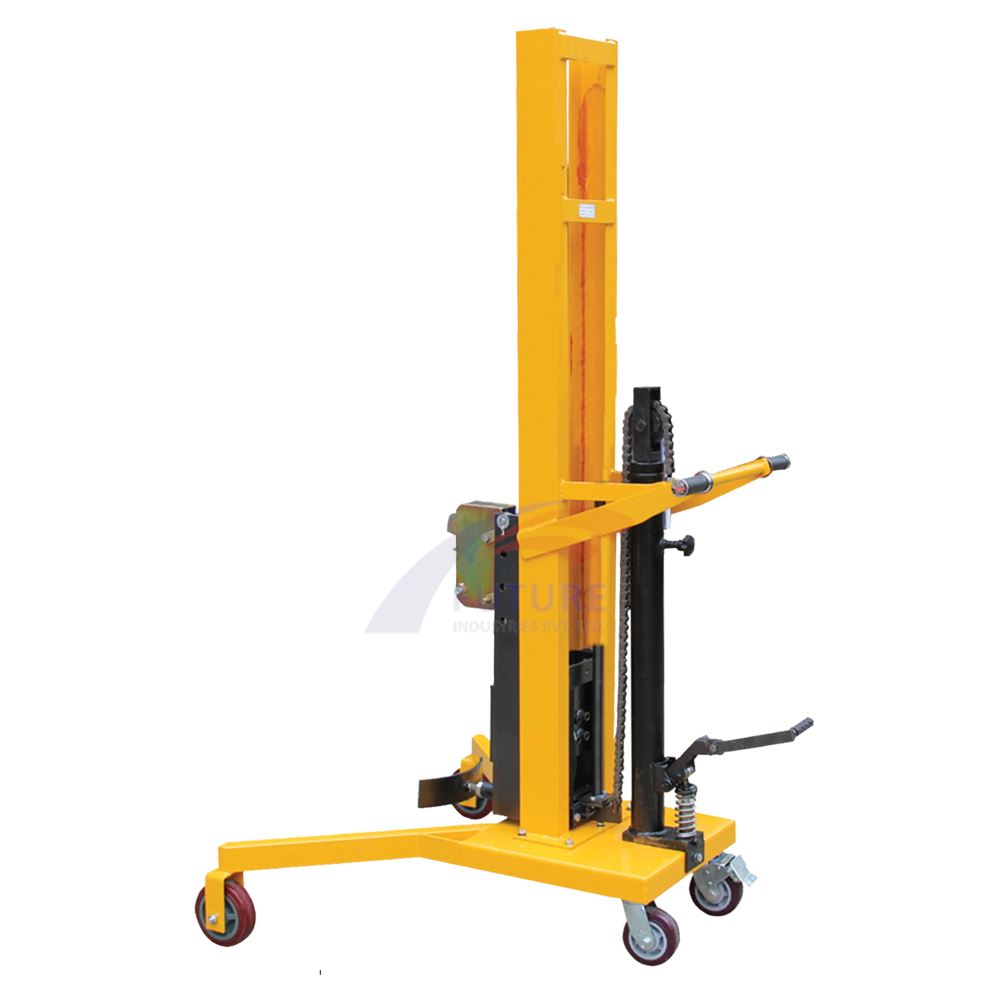

This DRTF450C is used to lift, stack and move drums directly from pallets or from ground.

  • Heavy-duty design, raised pedals, ergonomic handles, easy and safe, the hook automatically clamps the oil barrel during the lifting process, and the work is safe and reliable.
  • The Hook structure is suitable for 55 gallons of steel drums and 200L closed plastic oil barrels for lifting, stacking and movement.
  • Lift barrels directly from pallets.
  • Single and double eagle beaks can be selected according to different barrels.

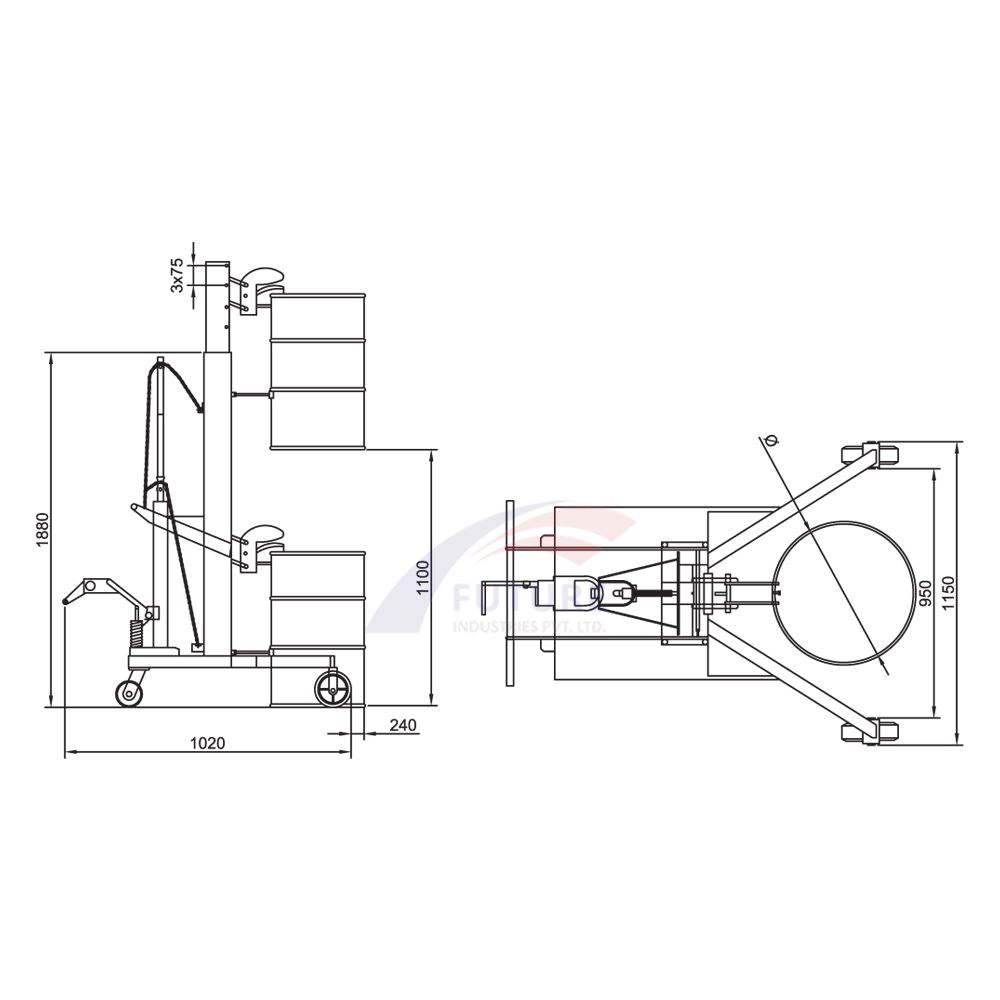

Specification of Hydraulic Drum Stackers

Load capacity kg 450
Net weight kg 135
Wheel dimension (Front / Rear) mm ǿ150*50/ǿ125*50
Inner/outer width of Front Leg mm 920/1140
Outline Dimension mm 1140*950*1870
Lifting height mm 1100
