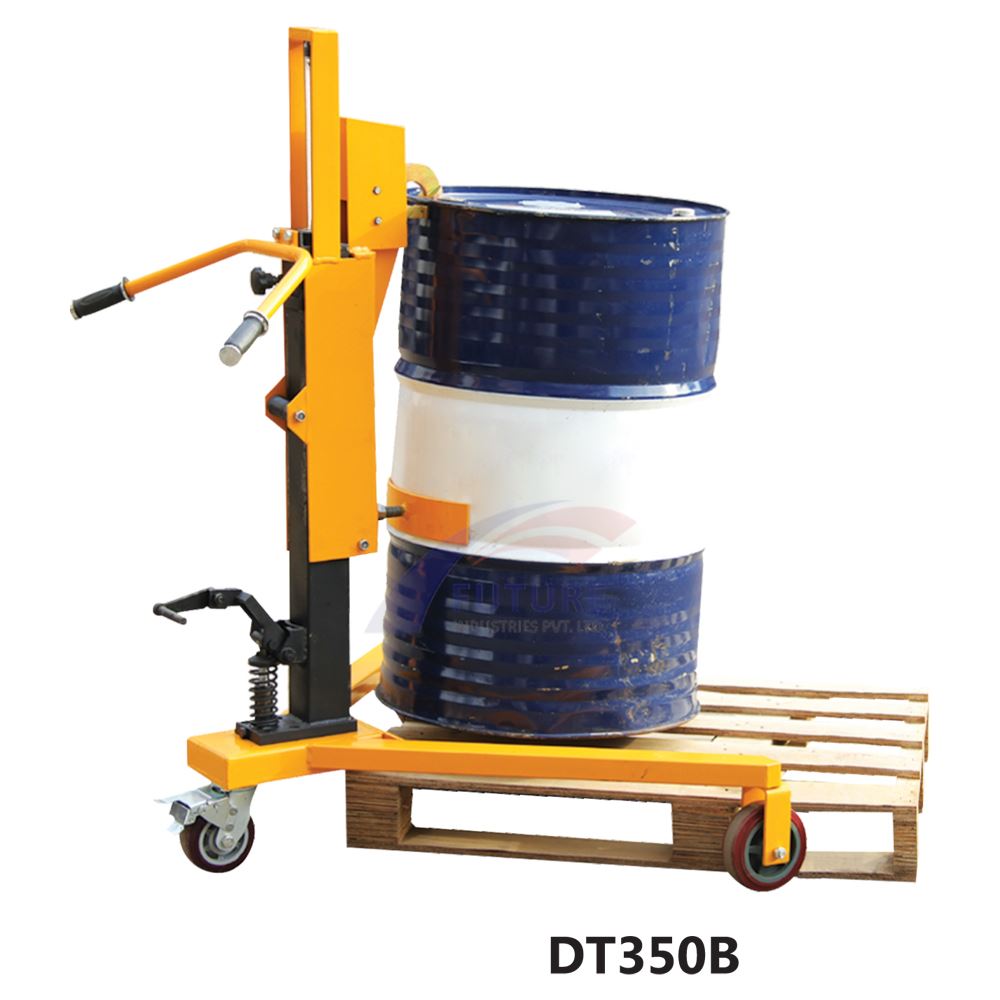

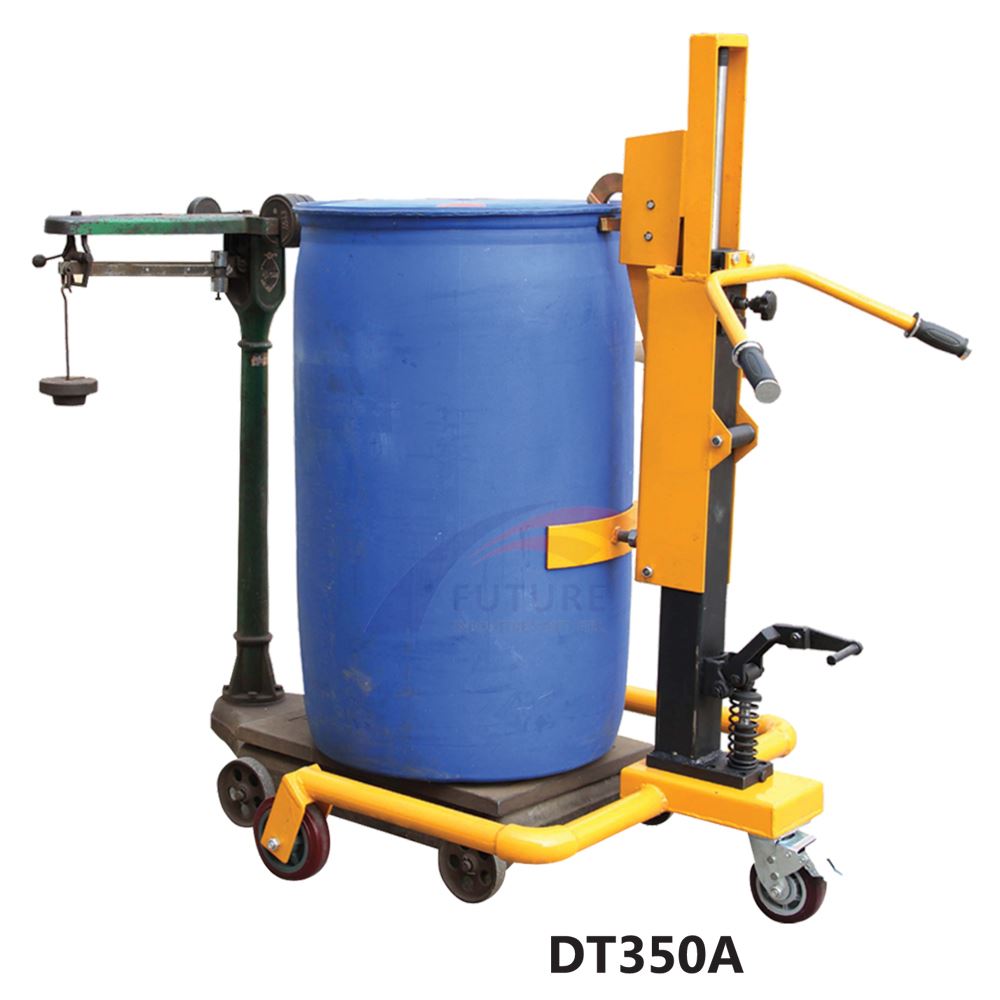

Pedal Hydraulic Drum Carriers
FIPL-DT350A/B
- Ergonomic solution for lifting, transporting and placing 55 gallon rimmed steel drums and 200L rimmed, plastic drums on spill or standard pallets.
- Eagle-grip structure and brake castor.
Specification of Pedal Hydraulic Drum Carriers
| MODEL | UNIT | FIPL-DT350A | FIPL-DT350B |
| Load capacity | kg | 350 | 350 |
| Net weight | kg | 50 | 50 |
| Wheel dimension (Front / Rear) | mm | ǿ150*50/ǿ125*50 | ǿ150*50/ǿ125*50 |
| Inner / outer width of Front Leg | mm | 700/920 U-SHAPE | 1050/1260 V-SHAPE |
| Outline dimension | mm | 920*920*1130 | 1260*920*1130 |
| Lifting height | mm | 300 | 300 |
