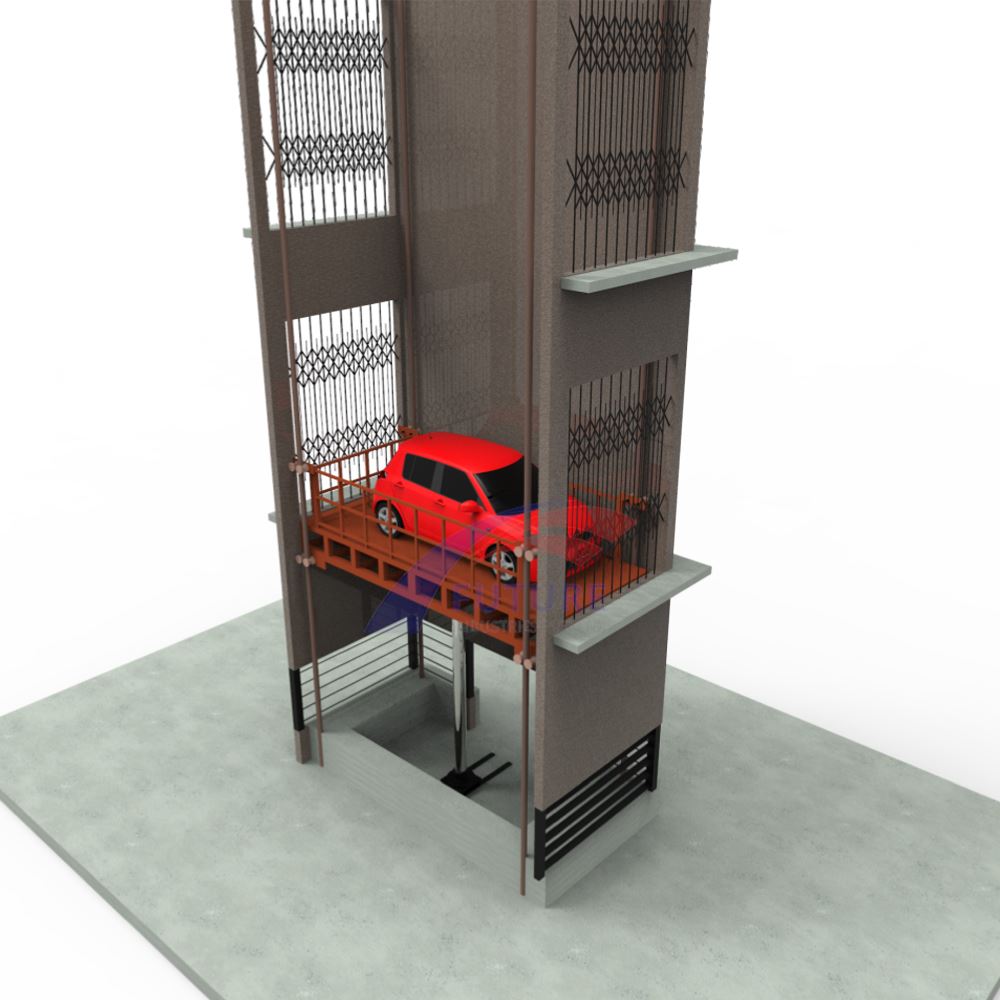

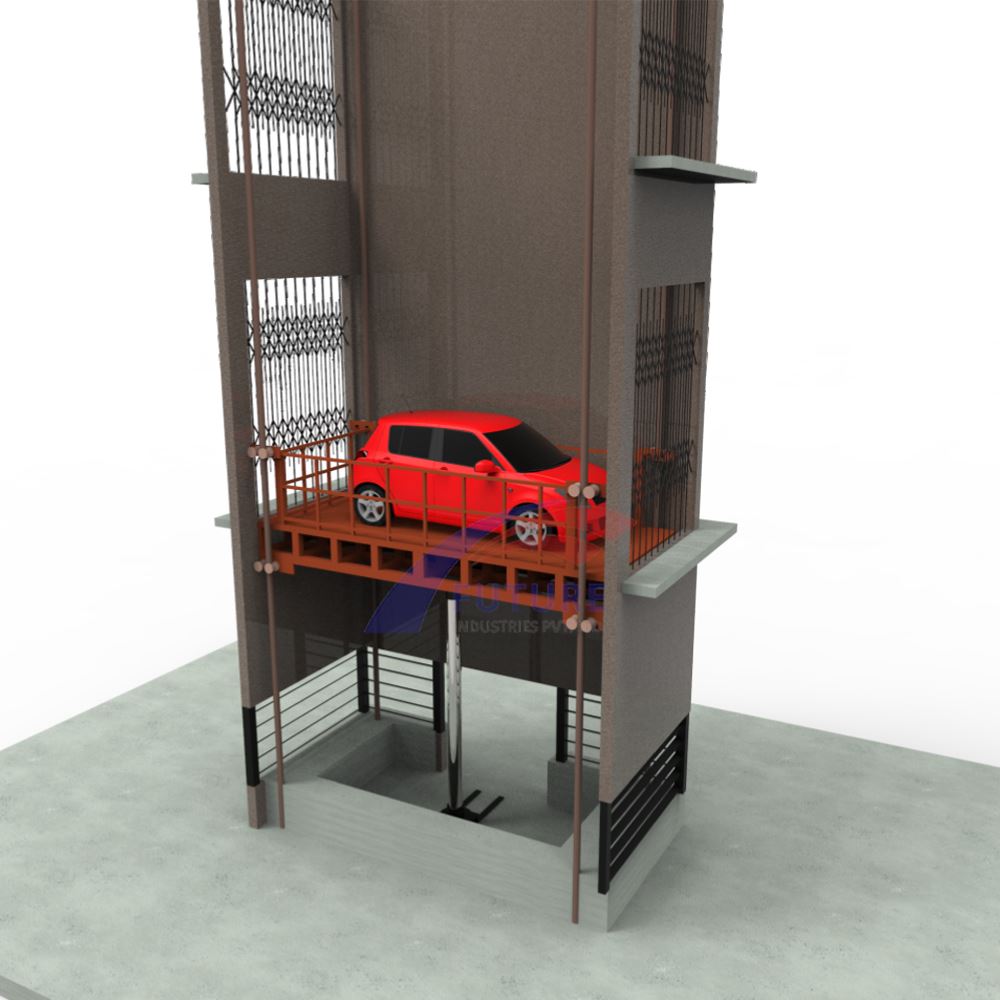

Center Cylinder / Boring Lift


To utilize maximum space for lift platform with high load carrying capacity, this type of Goods Lift is Most Suitable. A Bore-well is done at the center of Pit with diameter and length as per capacity and lifting height.


  • UHMW Guide Rollers guides the lift platform on round pipes of alloy steel.
  • Top platform is made of thick MS Pipes, and Sheet.
  • If it is required to cover the goods lift with structure it can be made from MS sheets, Wire-mesh, MS Pipes and Angles.

Hydraulic Cylinders:

  • One Nos. Heavy Hydraulic Cylinder with straight mounting and with a large rod, bore, and stroke size as per capacity requirements is used.
  • High strength steel piston rod is precision ground and hard chrome plated to ensure anti-corrosive and durability of seal.

Two, three or four side railings are provided as per user requirements.

MS Cabin made of MS pipes or MS Panels or MS Wire-mesh can be provided as per user requirement.

Collapsible Doors:
If require, MS Collapsible doors can be provided for additional safety.

Entire structure shall be powder coated or PU finish painted after a surface finish process.

Power Pack & Accessory:
AC Power Pack with three phase induction motor, Gear Pump, Cartridge solenoid valve, Pressure relief valve, Flow control valve, Check valve, Suction filter with hydraulic hose pipe and fittings.

Motor Make
ABB/ Bharat Bijlee/ Crompton/ Rotomotive (This makes of motor as per routine however in case of non-availability of this makes, we may use other standard make.)

Panel Board:
An Electrical Panel is provided for safe operation and motor protection. An overload relay, contactor, MCB, SMPS, PRA Relay, Limit Switch etc. are used.


  • More/Bigger Space for platform.
  • Jerk free traveling.
  • Two/Four side Guide Rollers.
  • Used in Car Showrooms, Industries, Inside or Outside of buildings.

Optional Features:

  • Collapsible Doors / Auto Doors at Entry and Exit with Interlocking System.
  • Excel type elevator locks in Collapsible doors.
  • Cabin instead of railings on platform.
  • Doors on platform.
  • MS Structure to cover all sides of Goods Lift.
  • Blain Valves.

Specification of Center Cylinder / Boring Lift

Product Size
Capacity (Kg) 1000 - 5000 (As per requirement)
Platform Size (W*L) (mm) 1000x1000 (Min.) - 6000x3000(Max.) (As per requirement)
Min. Height
(Can be flushed in pit) (mm)
1000 - 1200 (As per requirement)
Lifting Height (mm) 2000 - 10000 (As per requirement)
Power Pack 5 HP - 15 HP (As per requirement)
Travel Speed (mm/sec.) 50 - 150
Levels G+1 / G+2 / G+3 / G+4 / G+5  (As per requirement)
Motor 3 Phase; ABB / BBL / Rotomotive / Siemens (As per requirement)
Railings on Platform 4 Sides, 1000mm Height (As per requirement)
Boring Dia and Height Dia- 100mm-350mm; Depth - Lifting Height + 5 Feet (As per requirement)
*Tolerance in lifting and technical Specs. +/- upto 25mm
