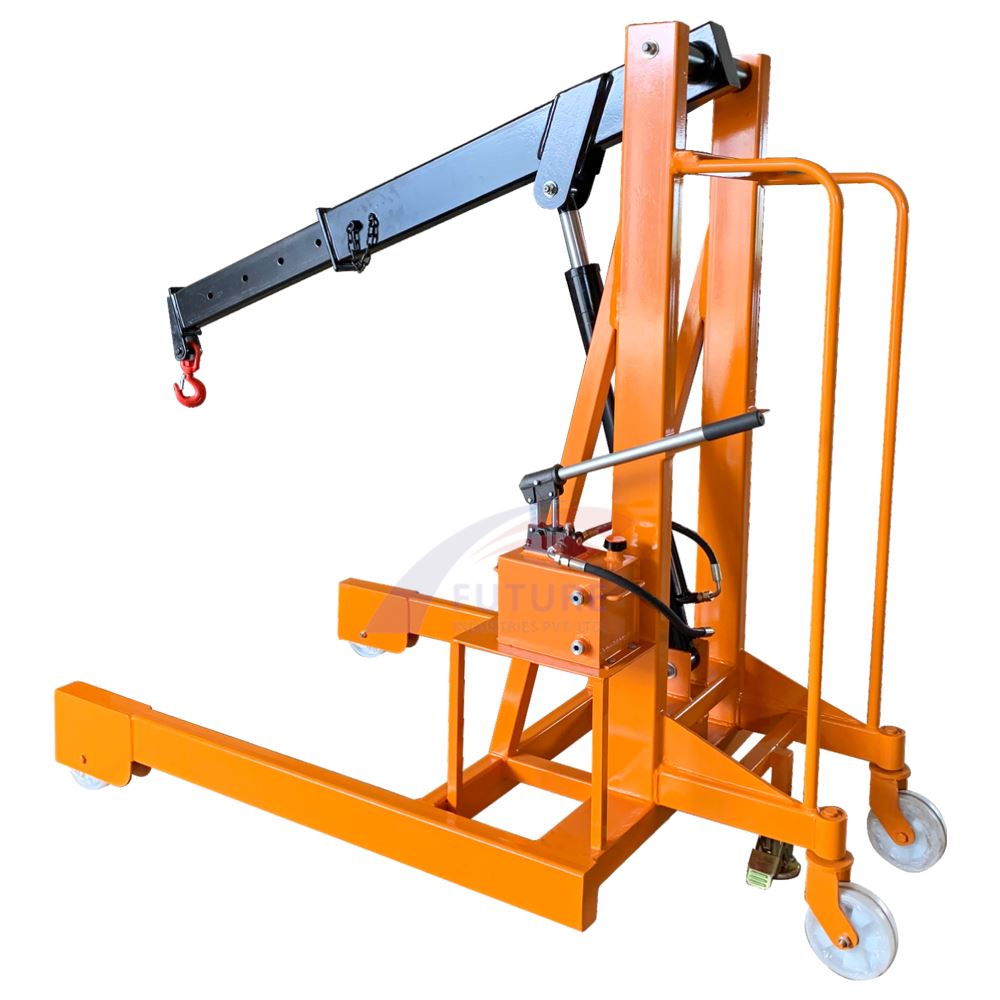

Hydraulic Mobile Floor Crane


If you want to pick a material from lifting belt and then shift it then the floor crane is most suitable equipment. The boom length is extendable which can be set as per the size of your object.

Up/Down operation of Boom is done by a Hydraulic Cylinder and a Manual Lifting Pump. It can also be operated by AC or DC Power Pack.

Structure: The Structure of floor crane is mainly consists MS Pipes of minimum 5mm Thickness with cross section size as per capacity requirements. Forged MS swivel type hook is provided to lift the material. Handle side wheel castors are custom built which permits them to take sufficient load capacity.

Hydraulic Unit

  • Hydraulic Cylinders with an appropriate rod, bore, and stroke size as per capacity requirements are used.
  • High strength steel piston rod is precision ground and hard chrome plated to ensure anti-corrosive and durability of seal.
  • Seamless Honed Tubes (Steel) to a micro-finish are used to ensure long piston seal life and prevent failure of the cylinder.
  • Manual Hand Pump is used to lift the boom.

Paint: Entire structure shall be powder coated or PU finish painted.

Power Pack Unit (Optional) : AC/DC Power Pack with solenoid cartridge valve, pressure relief valve, check valve and flow control valve.

Battery (Optional) : One 12V Battery with suitable AH rating will be provided. Make- Exide /SF Sonic /TATA /Amron


  • It has easy maintenance and minimal running cost.
  • Extendable boom is provided to lift the load from distant points.
  • A foot operated brake is provided to fix the floor crane during loading and unloading.

Optional Features

  • Boom Length/Width/Height customizable.
  • AC/DC Operating Power Pack.
  • Automatic Boom Operating from hydraulic cylinder.

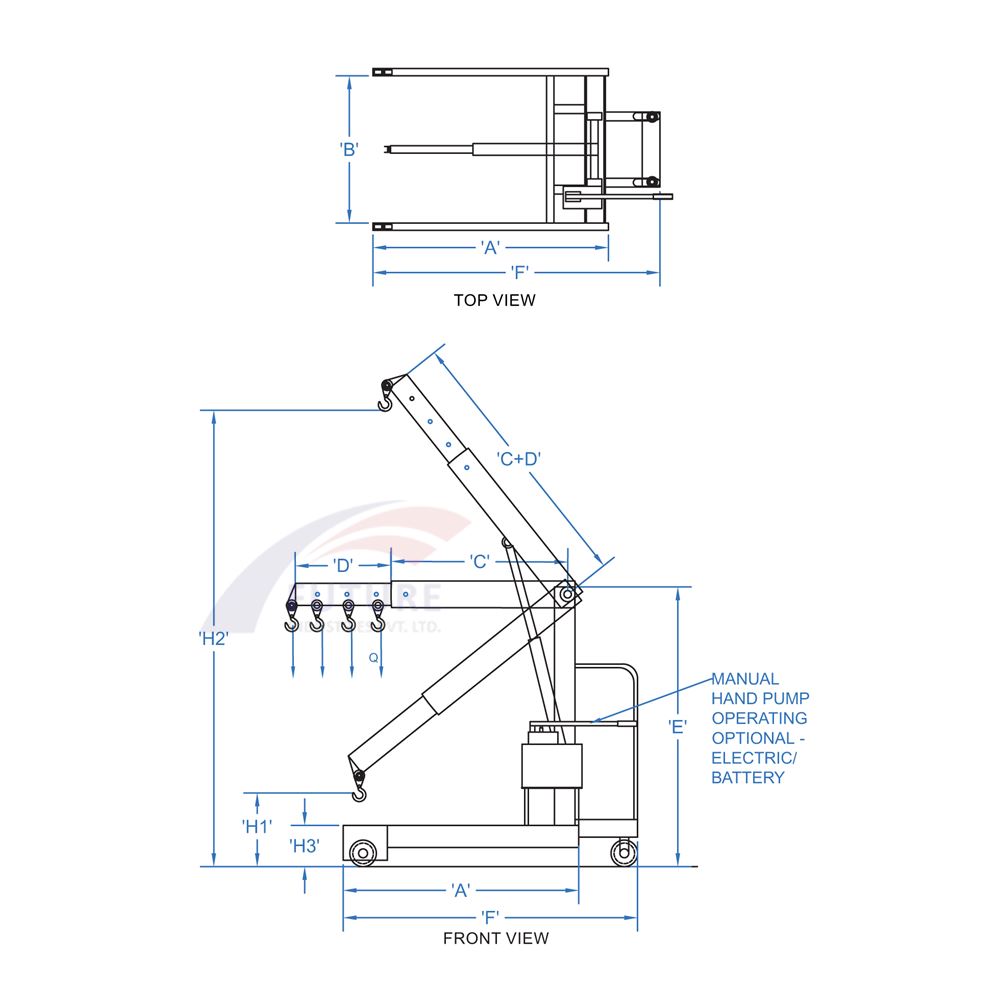

Specification of Hydraulic Mobile Floor Crane

Brand FIPL
Model Number FIPL-141
Capacity (Kg) 500 - 5000 (As per requirement)
Min. Hook Height. (mm) 500mm. (As per requirement)
Max .Hook Height. (mm) 3100 mm. (As per requirement)
Fork Width in to in (mm) 1000 mm. (In to in) (As per requirement)
Total Boom Arm Length (mm) 1850 (As per requirement)
Boom Extension (mm) 650 (As per requirement)
Wheel Type Nylon / PU / MS / UHMW
Operating Manual Hand Pump / Electric / Battery (As per requirement)
Boom Extension Manual / Hydraulic (As per requirement)
