Movable dock ramp is special accessory equipment which is used for rapid loading & unloading the containers, trucks through forklifts, stacker or other handling trucks by directly going into the carriage. The working efficiency is greatly increased through it.
The Movable hydraulic dock ramp with manual hydraulic control, doesn’t need any other power source and almost maintenance free.
The Movable Mechanical dock ramp has mechanical gear box with Jacks which is also easy to operate and almost maintenance free.
It is also easy and convenient to move and change the working location of the dock ramp by forklift.
Hydraulic Cylinder (Optional): One Nos. Hydraulic Cylinder with straight mounting and with an appropriate rod, bore, and stroke size as per capacity requirements is used.
High strength steel piston rod is precision ground and hard chrome plated to ensure anti-corrosive and durability of seal.
Seamless Honed Tubes (Steel) to a micro-finish are used to ensure long piston seal life and prevent failure of the cylinder.
Railing: MS Channel Railing is provided with standard 300mm Height. It can be changed if needed.
Wheels: Strong Solid Rubber Wheels with MS Hub and Taper Roller Bearings are used.
Paint: Entire structure shall be PU finish painted.

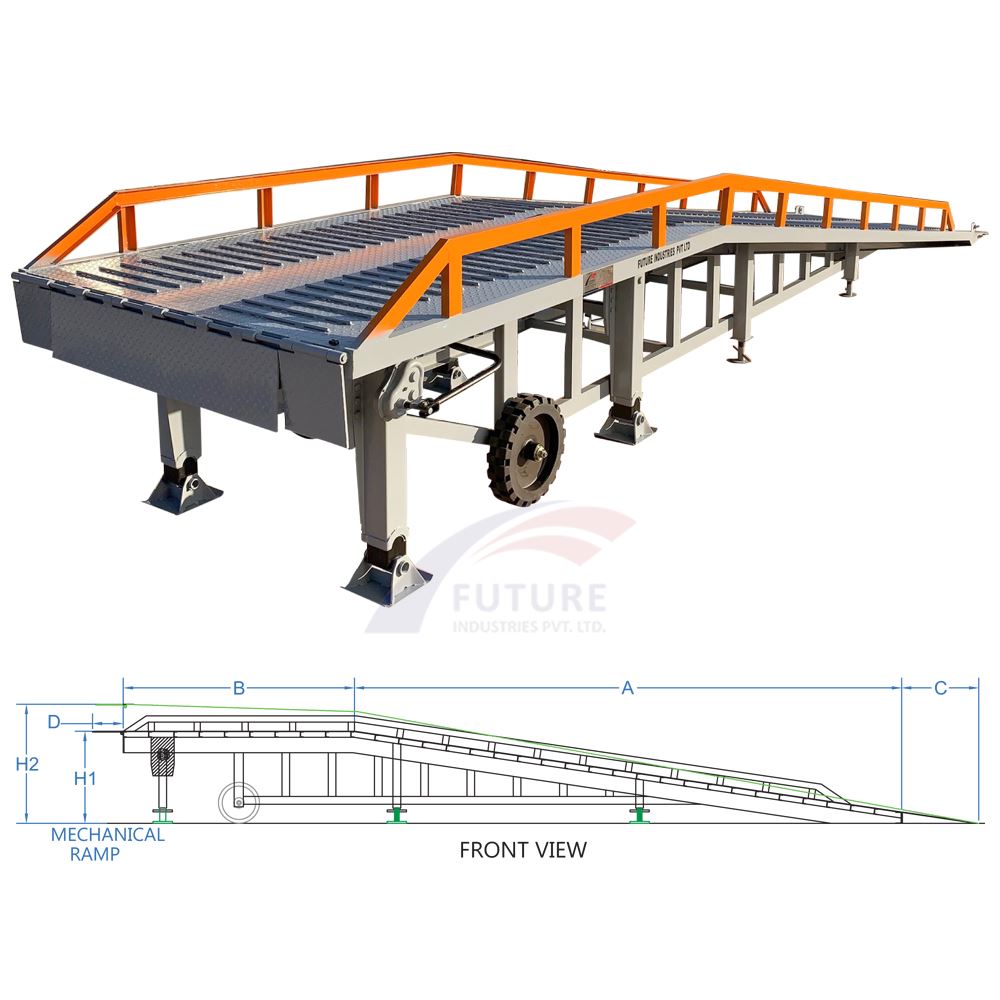

|Capacity||Q||10 / 15 Ton||10 / 15 Ton|
|Ramp Length||A||7100 mm||7100 mm|
|Platform Length||B||3000 mm||3000 mm|
|Small Ramp Length||C||1000 mm||1000 mm|
|Flap Length||D||300 mm||300 mm|
|Railing Height||E||300 mm||300 mm|
|Ramp Width||F||2200 mm||2200 mm|
|Overall Length||G||11400 mm||11400 mm|
|Close Height||H1||1200 mm||1200 mm|
|Raised Height||H2||1700 mm||1600 mm|
*DIMENSIONS CAN BE CUSTOMIZED AS PER REQUIREMENT.
*Note: There may be any specification/dimensional change. If these specifications are critical, the proposed application should be discussed
