Battery Operated Pallet Truck

FIPL-BOPT-108

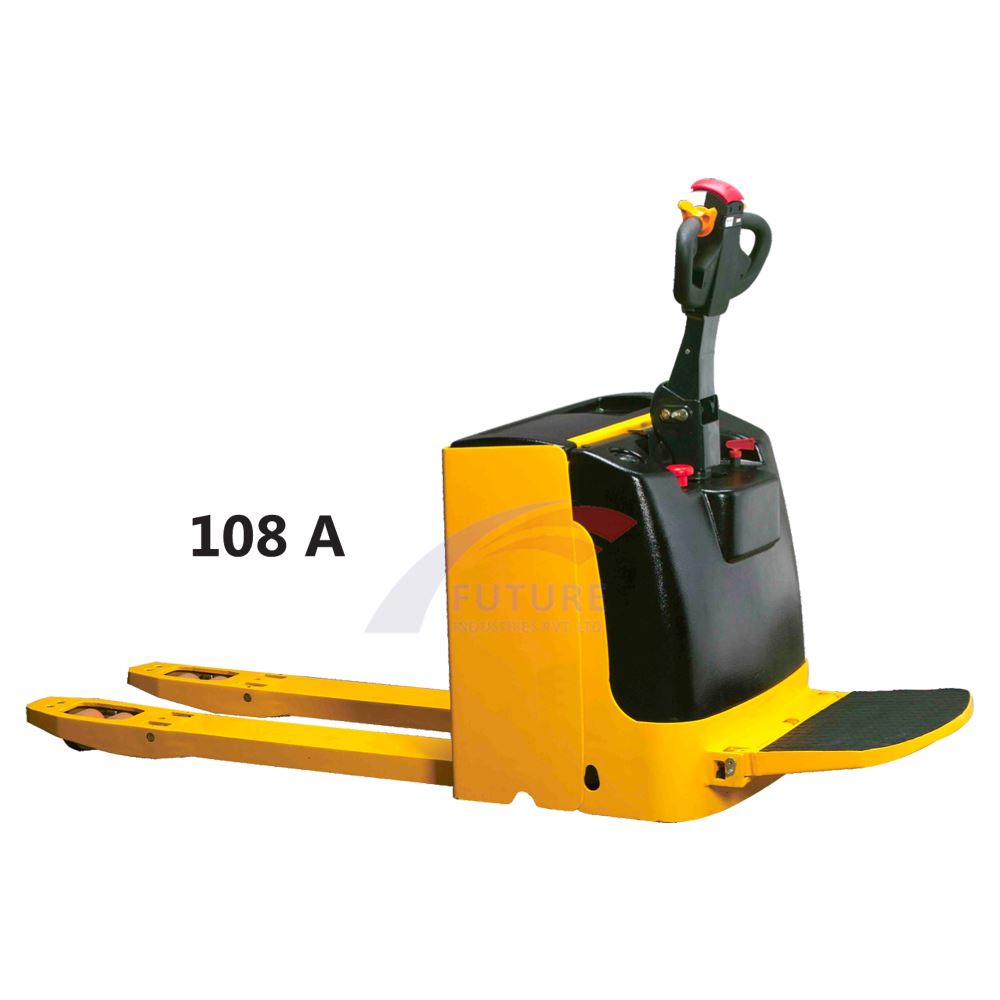

108 A

This Fully automatic Rider type Battery Operated Pallet Truck offers a huge advantage over hand pallet truck with its quick and effortless loading and transporting features, the compact design with easy move in the most confined space and narrow aisle such as in retail stores, small warehouse.

Features

  • The BOPT incorporates the power-drive system, ensuring smooth and progressive control at all times.
  • The tiller arm is easy and comfortable to use, with fingertip lift and lower buttons and simple forward/reverse control.
  • Suspension design for drive system ensures a good wheel and ground contact with comfortable operation.
  • Overload Protection through pressure relief valve.
  • Operators Belly Switch for operator's protection.
  • Jerk free lifting and lowering.
  • Cut-off limit at top height to save energy and motor overheating.

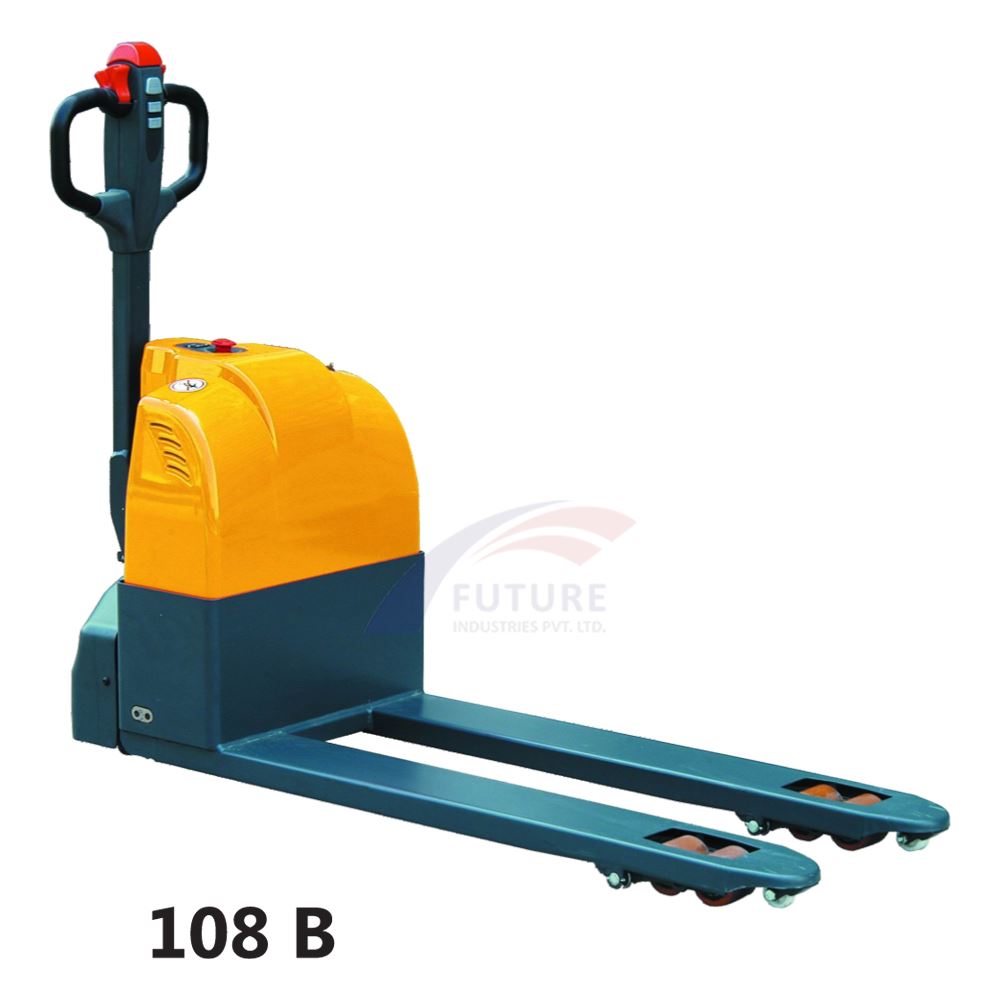

108 B

The Economical option of 108A, this Walkie type Battery Operated Pallet truck has compact and light design which is suitable for a variety of low duty applications in warehouses or delivery applications. Battery operated lifting/ lowering and forward/ backward operation makes it very comfortable in use.

Features

  • Ideal solution for Light Duty applications
  • Built-in charger for high autonomy
  • Battery discharge indicator with automatic cut-off function for higher battery lifetime.
  • Overload Protection through pressure relief valve.
  • Operators Belly Switch for operator's protection.
  • Jerk free lifting and lowering.
  • Cut-off limit at top height to save energy and motor overheating.
Back

Specification of Battery Operated Pallet Truck

MODEL FIPL-BOPT-108 A FIPL-BOPT-108 B
Product Size
Capacity (kg) 2500 1500
Min. fork height (mm) 90 90
Max. fork height (mm) 200 200
Lifting height (mm) 110 110
Fork length (mm) 1150/1220 1150/1220
Single fork width (mm) 160 160
width over all forks (mm) 550/685 550/685
Fork wheel – tandem (mm) 80x70 PU 80x70 PU
Support wheel (mm) 180x70 PU -
Driving wheel (mm) 230x70 PU 150x55 PU
Turning Radius (mm) 1810 1810
Travel Speed (Loaded/Unloaded) (km/h) 4.5/5.5 4.5/5.5
Lifting Speed (Loaded / Unloaded) (mm/sec) 22/30 22/30
Lowering Speed (Loaded / Unloaded) (mm/sec) 28/24 20/18
Type of Control Rider Stand on Platform walkie
Traction Motor 24 V, 1.5 kW 24 V, 1 kW
Lift Motor 24 V, 2 kW 24 V, 1 kW
Battery - Voltage / Capacity 24V / 240 Ah 24V / 100 Ah
