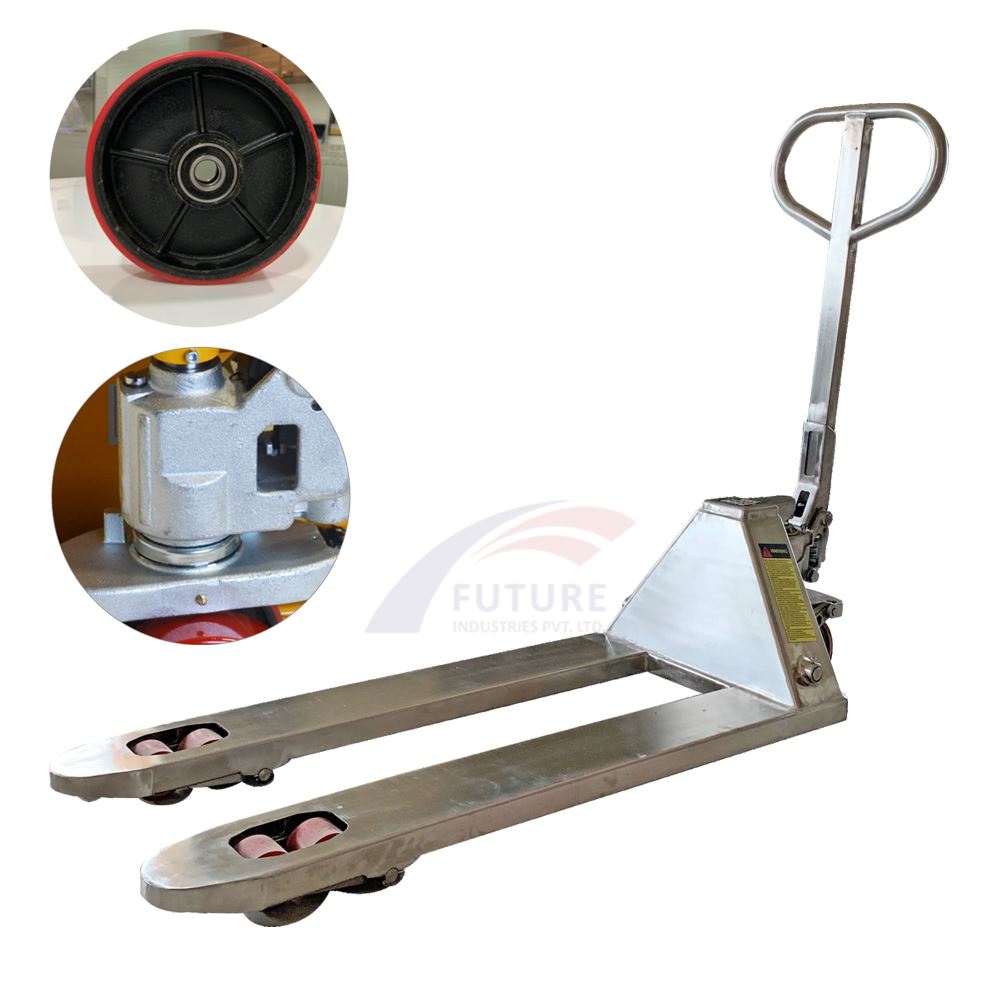

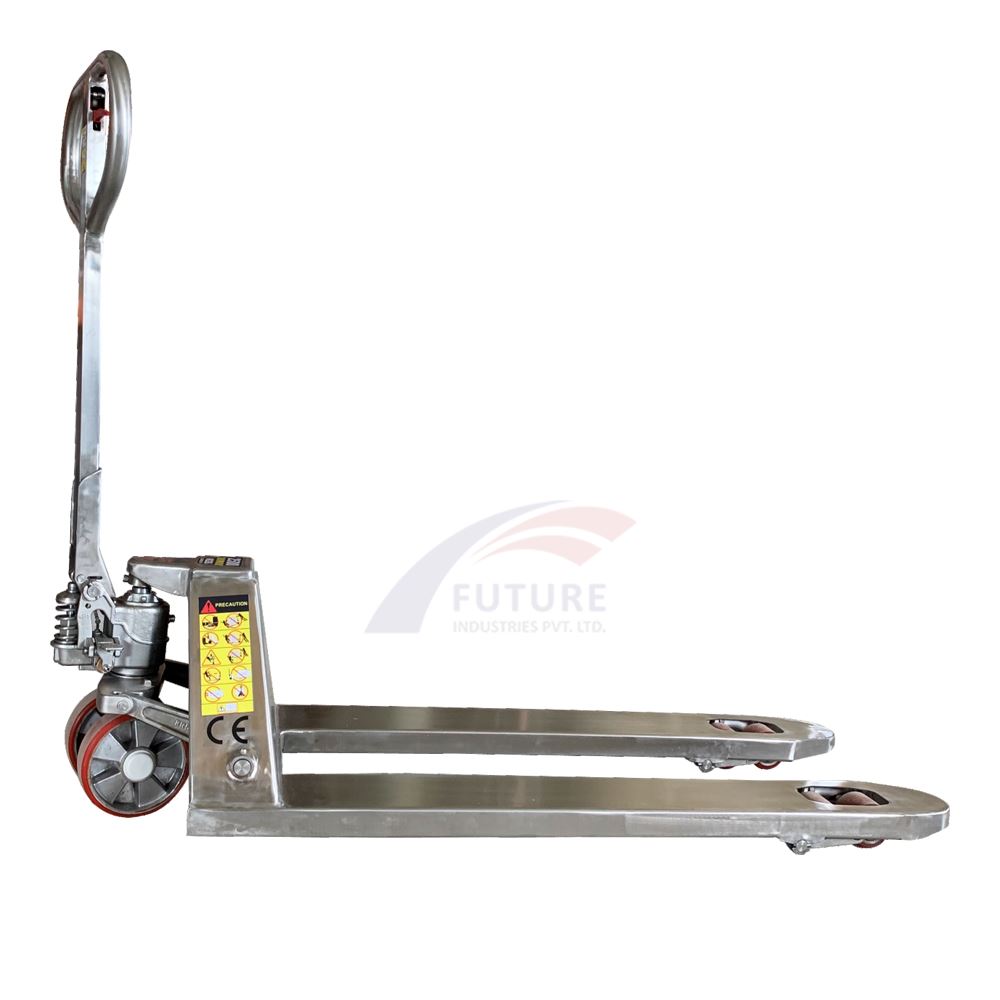

Stainless Steel Pallet Truck

FIPL-SSHPT-104

Stainless steel pallet trucks are designed for environments where hygiene is paramount or where the pallet truck will come into contact with corrosive substances such as salt water, acids and various chemicals.

Features

  • Full stainless steel mainframe.
  • Full stainless steel hydraulic pump and handle.
  • Full stainless push rods, axis, pins, bolts & bearings.
  • Fully sealed hydraulic pump (i.e. No atmospheric contaminates in hydraulics.)

High Quality Pump
The one-piece cast pump design resists the efforts of cold, condensation and washing. And they are fitted with additional grease nipples for easy maintenance and with sealed stainless steel bearings.

Options: Available with Nylon and Polyurethane wheels.

Back

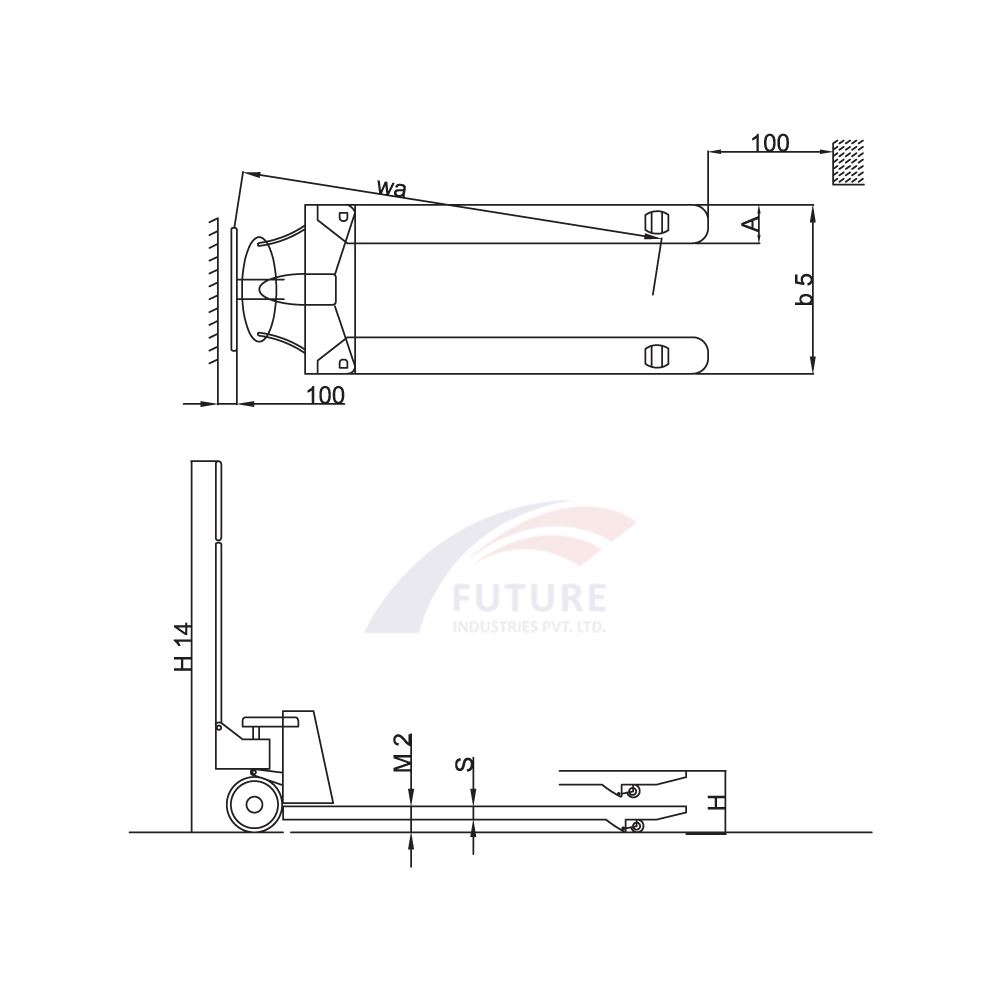

Specification of Stainless Steel Pallet Truck

Model FIPL-SSHPT-104-20 FIPL-SSHPT-104-25 FIPL-SSHPT-104-30 FIPL-SSHPT-104-50
Capacity (kg) 2000 2500 3000 5000
Min. fork height (mm) 65/75/85 65/75/85 75/85 80/90
Max. fork height (mm) 175/185/195 175/185/195 185/195 190/200
Lifting height (mm) 110 110 110 110
Fork length (mm) 1150/1220 1150/1220 1150/1220 1150/1220
Single fork width (mm) 160 160 160 160
With over all forks (mm) 550/685 550/685 550/685 550/685
Fork wheel – single (mm) 80x93/74x93 80x93/74x93 80x93/74x93 80x93/74x93
Fork wheel – tandem (mm) 80x70 80x70 80x70 80x70
Steering wheel (mm) 180x50 180x50 180x50 180x50
Self weight (kg) 60-65 73-92 80-90 120-130
Qty 20 feet container (pcs) 180/144 180/144 180/144 180/144
