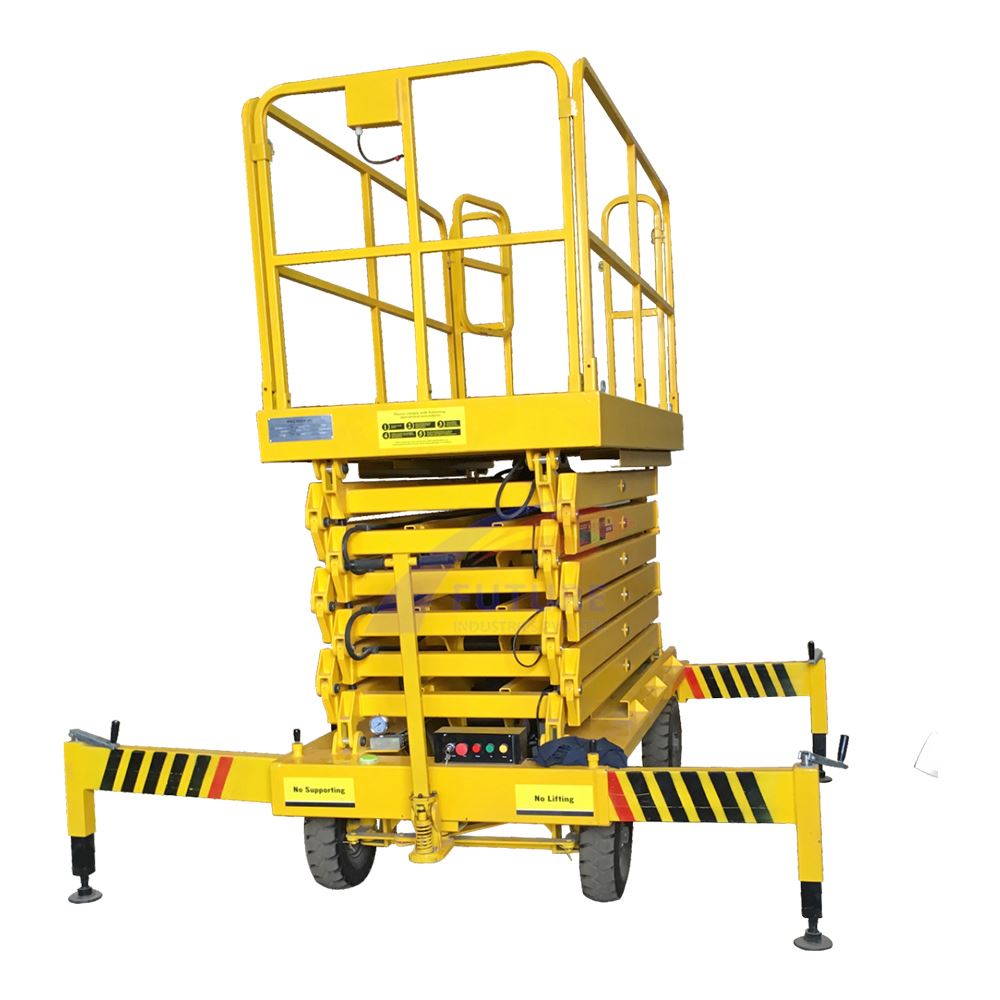

High Rise Scissor Lift

FIPL-138

Mobile scissor aerial work platform is an equipment used widely in aerial work. Widely used in construction sites, workshops, warehouses, granary, bus/railway stations, hotels, airports, gas station and aerial pipeline for the equipment installations and maintenance. It is also used for decoration, street lamp maintenance and building cleaning etc.

Mobile hydraulic scissor lift platform has the advantages of being flexible in movement, steady in lifting, convenient to operate, large in carrying capacity.

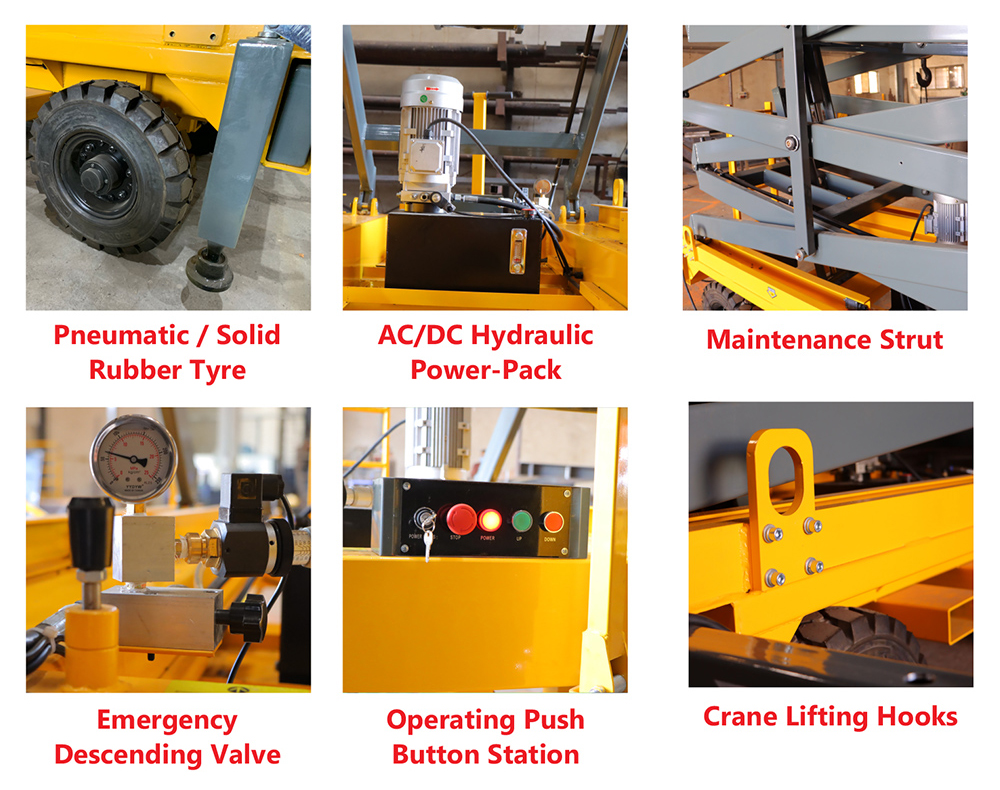

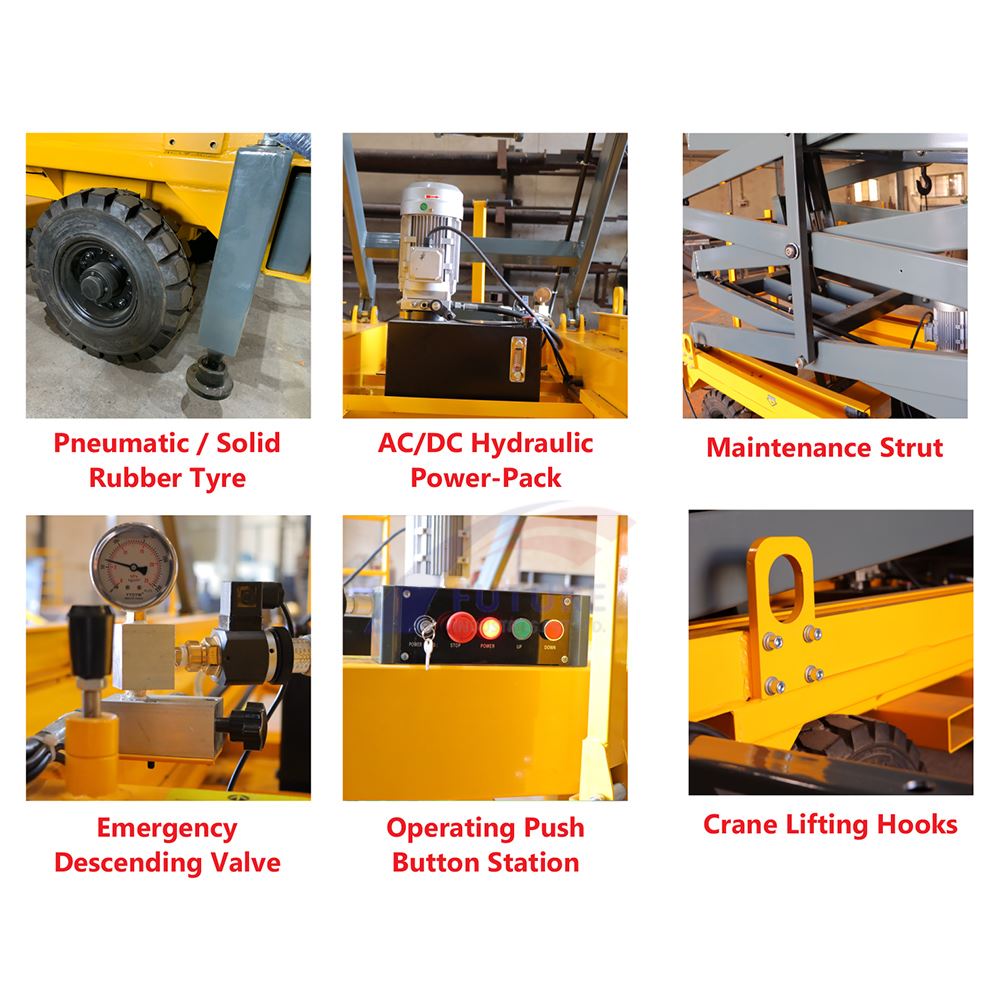

Main Features

  • Pointing control of lifting up and down.
  • Manganese steel lifting arm in high strength with rectangle shape.
  • Anti-skid chequered plate top platform.
  • The control push buttons are available on the platforms and ground.
  • Fine grinding cylinder in good sealing performance.
  • Neatly folding guardrails.
  • Optional extension platform.

Safety Precautions

  • The operating voltage on the platform is 24V.
  • Emergency stop button on the platform and ground.
  • Auxiliary lowering device.
  • Rain-proof design electric cabinet.
  • Fold-able fence on the platform.
  • Outrigger on the chassis for more stability.

Optional Configurations

  • Motorized Device (Drive System).
  • Extension Platform.
  • DC power or both AC & DC power.
  • Solid Tyre.
Back

Specification of High Rise Scissor Lift

Model FIPL-138/6 FIPL-138/7.5 FIPL-138/9 FIPL-138/11 FIPL-138/12 FIPL-138/14 FIPL-138/16 FIPL-138/6-10 FIPL-138/9-10 FIPL-138/12-10
S.W.L 500 kg 500kg 500kg 500kg 500kg 500kg 300kg 1000kg 1000kg 1000kg
Platform height max 6m 7.5m 9m 11m 12m 14m 16m 6m 9m 12m
Platform size (L*W) 1.85x
0.88m
1.8x
1.00m
1.8x
1.00m
2.1x
1.15m
2.45x
1.35m
2.45x
1.35m
2.75x
1.5m
1.8x
1.00m
1.8x
1.25m
2.45x
1.35m
Overall size (L*W*H) 1.9x1.12
x0.75m
1.85x1.24
x1.5m
1.85x1.24
x1.65m
2.25x1.59
x1.85m
2.15x1.59
x1.85m
2.15x1.59
x2.00m
2.75x1.74
x2.00m
1.85x1.24
x1.1m
1.95x1.45
x1.75m
2.5x1.55
x1.88m
Lifting time 54S 72S 80S 88S 90S 120S 130S 80S 100S 135S
Motor power 1.5kW 1.5kW 1.5kW 2.2kW 3kW 3kW 3kW 2.2kW 3kW 4kW
Power voltage AC380V AC380V AC380V AC380V AC380V AC380V AC380V AC380V AC380V AC380V
Weight 650kg 1100kg 1260kg 1380kg 1850kg 2150kg 2680kg 950kg 1510kg 2700kg
Tyre ǿ200
pneumatic tyre
ǿ400-8
pneumatic tyre
ǿ400-8
pneumatic tyre
ǿ500-8
pneumatic tyre
ǿ500-8
pneumatic tyre
ǿ500-8
pneumatic tyre
ǿ500-8
pneumatic tyre
ǿ500-8
pneumatic tyre
ǿ500-8
pneumatic tyre
ǿ500-8
pneumatic tyre
