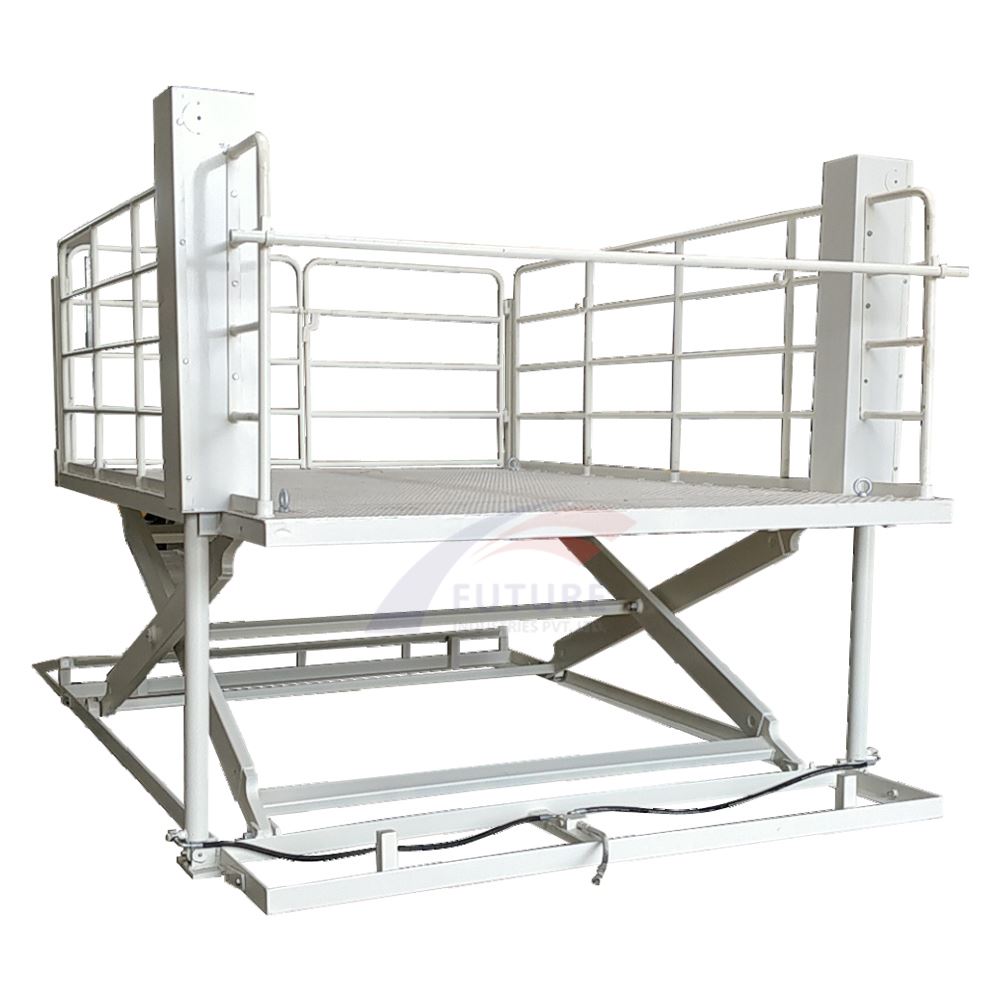

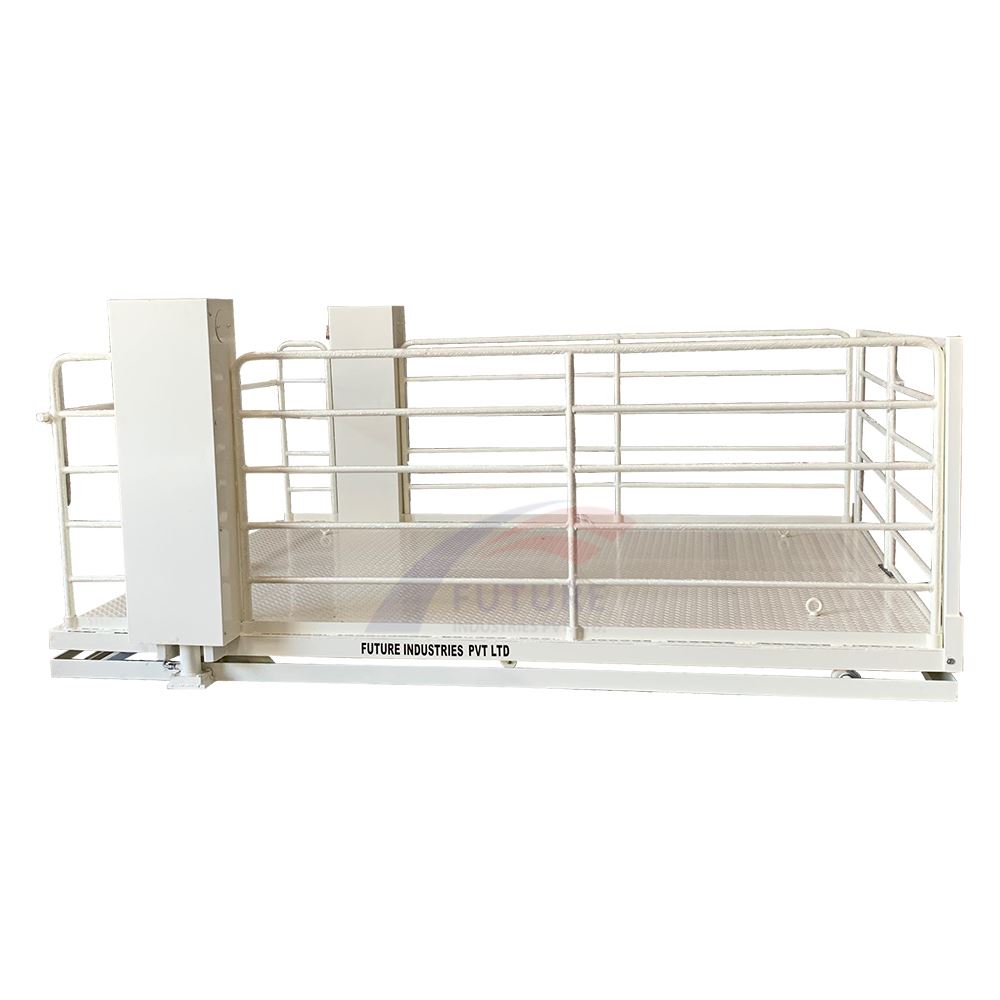

Low Profile Scissor Lift Table

FIPL-136

If you want lower height of scissor lift as low as 200mm then this type of scissor lift is very much suits your need. The side mounting cylinders make it possible to lower the close height of lifter.

Structure

  • The Scissor lift table's main part is scissor arms which are made from MS Pipes (Grade- YST210/YST240/YST310).
  • The top platform and Bottom frame are made from MS Channel, Sheet, Angles, and Pipes.
  • Scissor Joining Pins are processed through carburizing, hardening, and grinding. These processes make them durable for life.
  • Gunmetal Bushes / DU Bushes are used at scissor joints for smooth and silent operation.
  • Grease nipples are also provided on pins for smoothening the operation.

Hydraulic Cylinders

  • Hydraulic Cylinders are vertical mounted with an appropriate rod, bore, and stroke size as per capacity requirements.
  • High strength steel piston rod is precision ground and hard chrome plated to ensure anti-corrosive and durability of seal.
  • Seamless Honed Tubes (Steel) to a micro-finish are used to ensure long piston seal life and prevent failure of the cylinder.

Flap / Lip: Flaps can be provided to bridge the gap between scissor lifter and loading vehicle/ floor. The quantity and operation (Manual or Hydraulic) of flaps are as per customer requirement.

Paint: Entire structure shall be powder coated or PU finish painted.

Electric Power Pack & Accessory: AC Power Pack with three phase induction motor, Gear Pump, Cartridge solenoid valve, Pressure relief valve, Flow control valve, Check valve, Suction filter.

Motor Make: ABB/ Bharat Bijlee/ Crompton/ Rotomotive (This makes of motor as per routine however in case of non-availability of this makes we may use other standard make.)

Panel Board: An Electrical Panel is provided for safe operation and motor protection. An overload relay, contactor, MCB, SMPS, PRA Relay, Limit Switch etc. are used.

Standard Features

  • Carburized and surface hardened Pins with Gun metal Bushing inside at scissor joints.
  • Hard Chrome plated Piston Rod and Honed Tubes for Cylinders.
  • Side Mounted Cylinders.
  • Safe Hydraulic Working with Overload Protection.
  • Electric Panel with MCB, Contactor, Overload Relay, SMPS for Operational Safety.

Additional / Optional Features

  • Railing on Two/Three/Four side of Platform.
  • Safety light Curtains.
  • Flaps / Ramp at any side of Platform.
Back

Specification of Low Profile Scissor Lift Table

Brand FIPL
Model Number FIPL-136
Load capacity (kg) 500 - 2500 (As per requirement)
Max lifting height (mm) 100 - 2000 (Depends on Platform Size) (As per requirement)
Min lower height (mm) 180 - 250 (Depends on Capacity) (As per requirement)
Platform Size (mm) 1000x1000 - 4000x3000 (As per requirement)
Operating AC Electric (As per requirement)
Power Pack 2HP - 5HP (As per requirement)
