Economic Power Stacker
FIPL-EPST-118

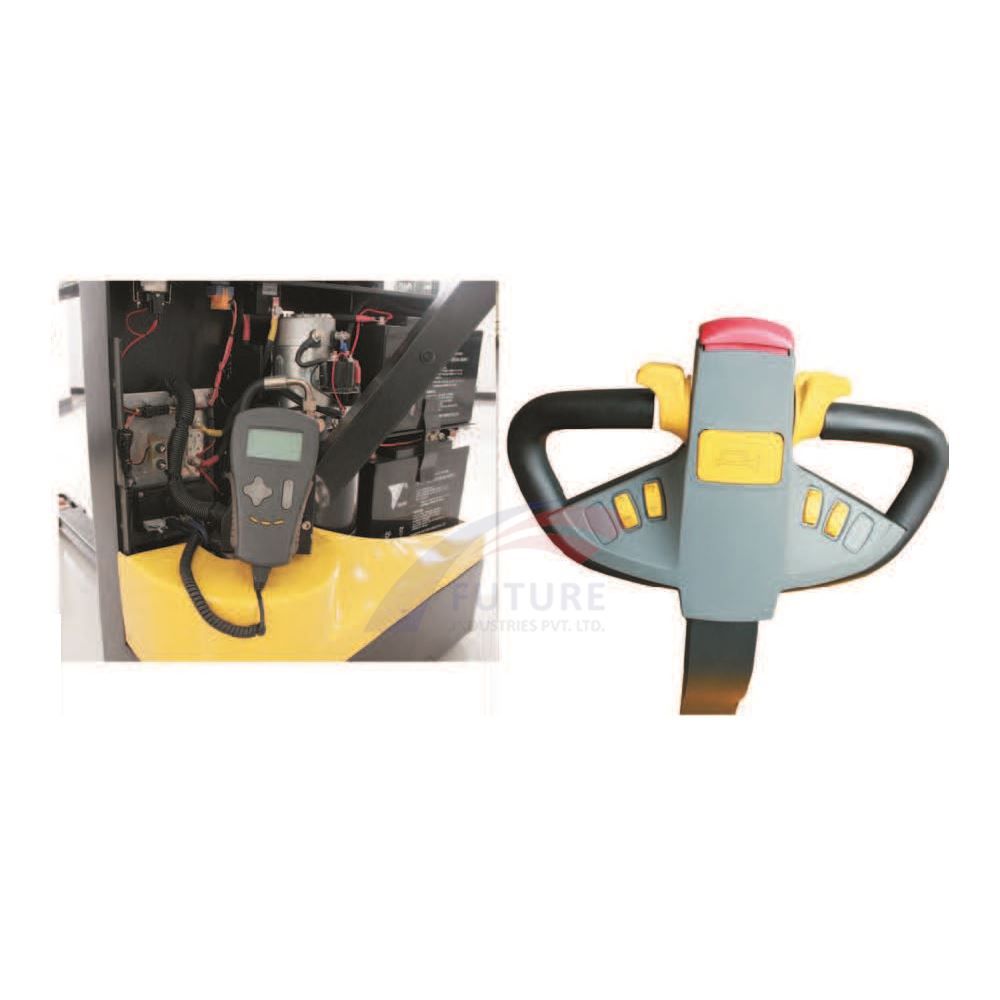

Economic Power Stacker with Multifunction Intelligent Handle, an ideal and budget affordable model to replace Semi-Electric Stacker and manual stacker in the market, to bring a high efficiency and effortless pallet stacking.

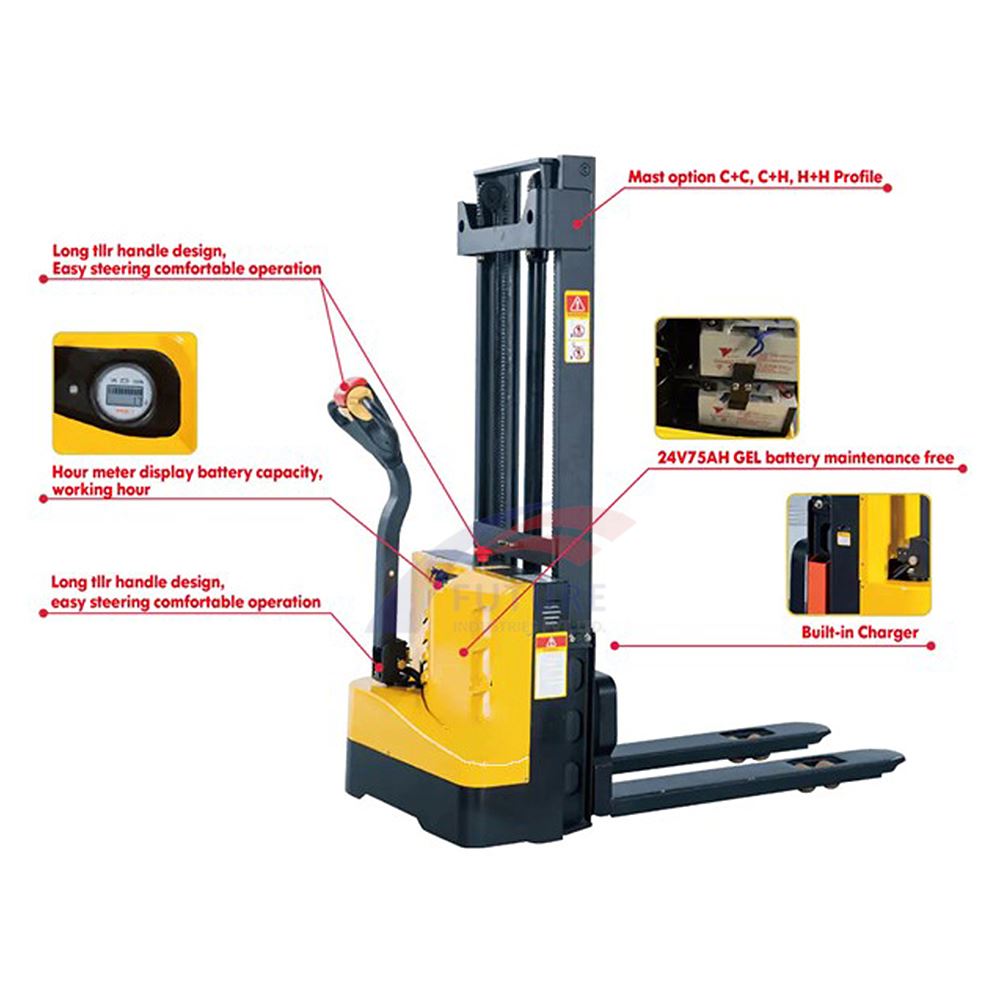

- The Economic Stacker makes material shifting and stacking much faster and easier.
- Electric Braking makes it safe even on slops.
- No need to Push or Pull Heavy Loads, electric drive unit assists operator greatly, especially while turning.
- High quality MS Material, Drive unit, gear box and curtis controller ensures longer life.
- Long tiller arm design, easy steering comfortable operation.
- Light-sensor inching switch, to replace traditional mechanical switch, with long working life and stable quality.
- Maintenance free battery.
- Different mast option C+C, C+H. H+H profile.
Specification of Economic Power Stacker
| Brand | FIPL | FIPL |
| Model Number | FIPL-EPST-118A | FIPL-EPST-118B |
| Product Size | Light Duty Series | Heavy Duty Series |
| Capacity (kg) | 1000 / 1500 | 1000/1200/1500 |
| Min. fork height (mm) | 90 | 90 |
| Max. Lifting height (mm) | 1600/2500/3000/3300 | 1600/2500/3000/3300/3500 |
| Fork length (mm) | 1150 | 1150 |
| Single fork width (mm) | 160 | 160 |
| width over all forks (mm) | 540/680 | 820 |
| Fork wheel – tandem (mm) | Ø 80 PU - 2 Nos. | Ø 80 PU - 4 Nos. |
| Support wheel (mm) | Ø 210 PU - 1 Nos. | Ø 220 PU - 1 Nos. |
| Driving wheel (mm) | Ø 180 PU - 1 Nos.. | Ø 124 PU - 1 Nos.. |
| Min. Turning Radius (mm) | 1390 | 1460 |
| Travel Speed (Loaded/Unloaded) (km/h) | 3.5/4.0 | 3.5/4.0 |
| Lifting Speed (Loaded / Unloaded) (mm/sec) | 95/134 | 95/134 |
| Lowering Speed (Loaded / Unloaded) (mm/sec) | 130/94 | 130/94 |
| Type of Control | Walkie | Walkie |
| Traction Motor | 24 V, 0.65 kW | 24 V, 0.65 kW |
| Lift Motor | 24 V, 1.5 kW | 24 V, 2.2 kW |
| Battery - Voltage / Capacity | (12V / 75 Ah) x 2 | (12V / 75 Ah) x 2 |
| Control System | Curtis | Curtis |
